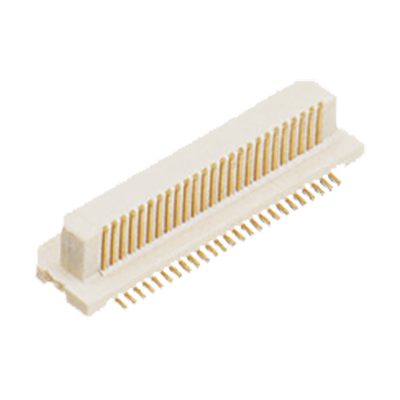

AXK6S50537YG Panasonic AXK6S50537YG is a 50 position, 2 row header connector with outer shroud contacts. Features 0.50mm pitch, surface mount mounting, gold contact finish, and board guide.
Mfr Part #:

AXK6S50537YG

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic AXK6S50537YG is a 50 position, 2 row header connector with outer shroud contacts. Features 0.50mm pitch, surface mount mounting, gold contact finish, and board guide.
✓ Total Stock: 1,483 pcs
$ Price Range: $3.37

AXK6S50537YG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,483 pcs
On Request
1483 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXK6S50537YG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

AXK6S50537YG Description

Short technical summary and product information.

The Panasonic AXK6S50537YG is a 50 position header connector with outer shroud contacts designed for high-density board-to-board mezzanine applications. It features a 0.50mm pitch and 2 rows of contacts, enabling compact interconnects with a surface mount termination style.



This connector supports mated stacking heights of 5mm, 5.5mm, and 8mm, offering flexibility in board spacing. The gold contact finish ensures reliable signal integrity and corrosion resistance. An integrated board guide aids in alignment during assembly.



Mounting is surface mount, with a height above board of 0.169 inches (4.30mm). The connector is suitable for use in electronic systems requiring dense, reliable interconnections between parallel circuit boards.

AXK6S50537YG Quick Information

Product Type: Header, Outer Shroud Contacts Connector
Series: P5K/P5KS
Canonical Name: Panasonic AXK6S50537YG Header, Outer Shroud Contacts Connector, 50 Position, 0.50mm Pitch, 2 Row, Surface Mount
Subcategory: Board to Board Connector

AXK6S50537YG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXK6S50537YG Estimated Pricing

Qty Low High
1,000+ $3.37 $3.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

AXK6S50537YG Features

  • 50 position, 2 row connector.
  • 0.50mm pitch for high density.
  • Surface mount mounting style.
  • Gold contact finish.
  • Board guide for alignment.

AXK6S50537YG Applications

  • Board-to-board mezzanine connections.
  • Compact electronic device interconnects.
  • Stacking multiple PCBs in parallel.

AXK6S50537YG FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the AXK6S50537YG connector have?

50 positions.

What is the pitch of this connector?

0.50mm.

What mounting type does the AXK6S50537YG use?

Surface mount.

What is the contact finish on this connector?

Gold.

What mated stacking heights are supported?

5mm, 5.5mm, and 8mm.

Does this connector have a board guide?

Yes, it includes a board guide feature.
