| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,326 pcs
|
7326 pcs | On Request | 1 | On Request | On Request | 1843+ | On Request | On Request | |
|
540 pcs
|
540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

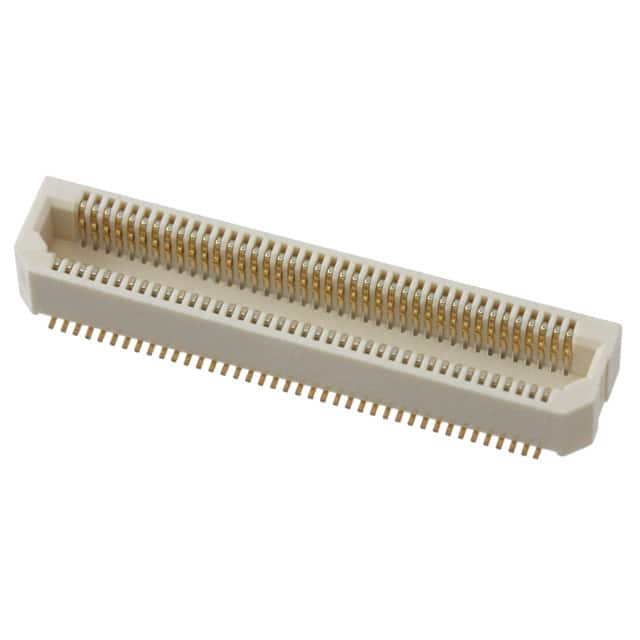

The Panasonic AXK5S60047YG is a 60-position socket connector featuring center strip contacts designed for board-to-board mezzanine applications. It has a 0.50mm pitch and 2 rows of contacts, making it suitable for high-density interconnections. The connector is surface mount and has a height above board of 3.05mm, supporting mated stacking heights of 4mm, 5mm, and 6mm.
This connector uses gold contact finish for reliable electrical performance. It is RoHS3 compliant and has an MSL of 1 (unlimited), though these compliance claims are unverified. The part is commonly used in compact electronic devices where space is at a premium.
Designed for automated assembly, the surface mount package facilitates efficient manufacturing. The connector is ideal for applications requiring a low-profile, high-density connection between parallel circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.11 | $2.11 |
| 25+ | $1.89 | $1.89 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.69 | $1.69 |
| 500+ | $1.61 | $1.61 |
| 1,000+ | $1.49 | $1.49 |
| 1,500+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50 mm.
It has 60 positions.
Surface Mount.
3.05 mm.
Gold.
4 mm, 5 mm, and 6 mm.
