| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
4,673 pcs
|
4673 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Capacitance (Typical @ 250MHz) | |
| Capacitance @ Frequency | |
| Clamping Voltage (Typical @ 500 V TLP Direct Discharge) | |
| Clamping Voltage (Typical @ IEC 61000-4-2 8 kV Direct Discharge) | |
| ESD Capability (Air Discharge) | |
| ESD Capability (Contact Discharge) | |
| ESD Pulse Withstand | |
| Halogen Free | |
| Leakage Current (Typical @24V) | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Rated Voltage (Maximum) | |
| Response Time | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Trigger Voltage (Typical @ 500 V TLP Direct Discharge) | |
| Trigger Voltage (Typical @ IEC 61000-4-2 8 kV Direct Discharge) | |
| Type | |
| Voltage |

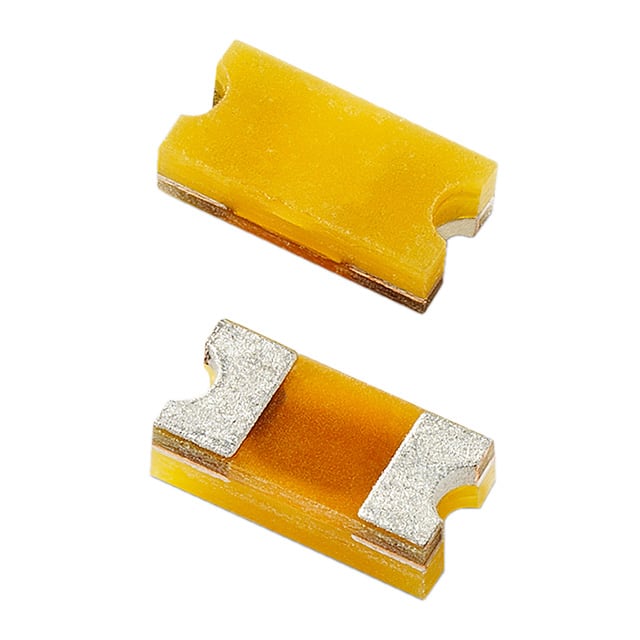

The Littelfuse AXGD10603NR is a surface-mount ESD suppressor from the XTREME-GUARD series, designed to protect sensitive electronics from extreme ESD events up to 30kV contact and air discharge. It offers a typical clamping voltage of 40V under IEC 61000-4-2 8kV direct discharge and an ultra-low capacitance of 0.09 pF at 250 MHz, preserving signal integrity for high-speed circuits.
This device features a fast response time of less than 1 ns and very low leakage current below 1 nA at 24V, making it ideal for high-frequency applications. It is bidirectional, withstands over 1000 ESD strikes, and operates over a wide temperature range of -65°C to 125°C. The component is housed in a compact 0603 (1608 metric) concave package, compatible with automated pick-and-place processes.
The AXGD10603NR is AEC-Q200 qualified for automotive use and is RoHS compliant, halogen-free, and lead-free. Typical applications include infotainment systems, high-speed interfaces (USB, DVI, LVDS, Ethernet), RF and antenna circuits, and other automotive electronics requiring robust ESD protection with minimal capacitive loading.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
| 10+ | $0.33 | $0.33 |
| 100+ | $0.27 | $0.27 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 2,500+ | $0.23 | $0.23 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 V typical under IEC 61000-4-2 8kV direct discharge.
30 kV contact and air discharge per IEC 61000-4-2.
0.09 pF typical at 250 MHz.
Less than 1 ns.
-65°C to 125°C.
0603 (1608 metric) surface mount package, concave.
Yes, RoHS3 compliant, also halogen-free and lead-free.
