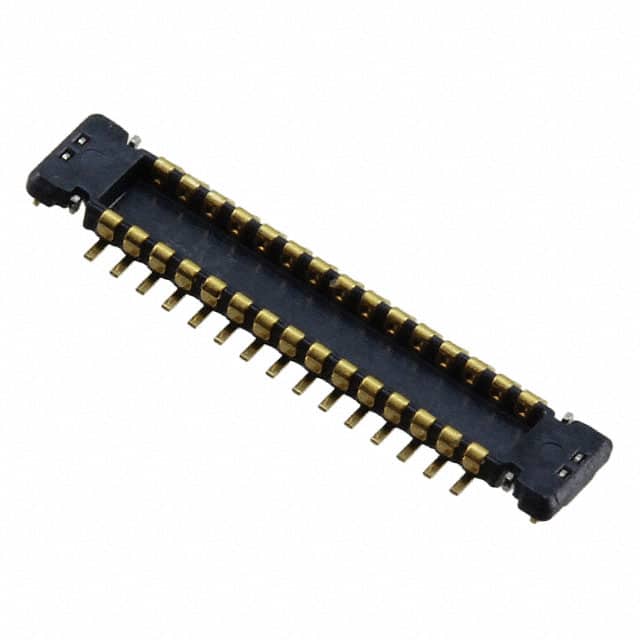

AXG830044 The AXG830044 is a 30-position, 0.35mm pitch board-to-board plug connector from Panasonic. It features surface mount termination, gold contact finish, and solder retention for reliable connections.
Mfr Part #:

AXG830044

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The AXG830044 is a 30-position, 0.35mm pitch board-to-board plug connector from Panasonic. It features surface mount termination, gold contact finish, and solder retention for reliable connections.
✓ Total Stock: 1,213 pcs

AXG830044 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,213 pcs
On Request
1213 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXG830044 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Insulation Resistance
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Rated Voltage
Storage Temperature
Tape & Reel
View Similar Products (0)

AXG830044 Description

Short technical summary and product information.

The AXG830044 is a 30-position plug connector with outer shroud contacts, arranged in 2 rows at a 0.35mm pitch. It is designed for board-to-FPC applications and features a mated stacking height of 0.6mm and a height above board of 0.46mm. The connector supports power terminals rated at 3.0A maximum per pin and signal terminals at 0.30A maximum per pin, with a total signal current limit of 5A. Rated voltage is 60V AC/DC. Contact resistance is 30mΩ maximum for power terminals and 90mΩ maximum for signal terminals. Insulation resistance is 1000MΩ minimum, and dielectric strength is 150V AC for 1 minute. Operating temperature range is -55°C to +85°C. The connector features solder retention for secure surface mount attachment. It is supplied in tape and reel packaging with a standard quantity of 10,000 pieces per reel. Typical applications include power and signal connections in portable devices such as smartphones and tablet PCs, particularly for USB and battery interfaces.

AXG830044 Quick Information

Product Type: Board-to-Board Connector
Series: AXG
Canonical Name: Panasonic AXG830044 30 Position 0.35mm Pitch Plug, Outer Shroud Contacts, Surface Mount
Subcategory: Plug, Outer Shroud Contacts

AXG830044 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AXG830044 Features

  • 30 positions with 0.35mm pitch in 2 rows.
  • Supports 3A power terminals and 0.3A signal terminals.
  • Surface mount with solder retention for secure attachment.
  • Gold contact finish for reliable conductivity.
  • Compact 0.6mm mated stacking height.

AXG830044 Applications

  • Ideal for power and signal connections in smartphones.
  • Used in tablet PCs for battery and USB interfaces.
  • Suitable for portable terminals requiring space-saving design.
  • Supports multiple connections in compact electronic devices.

AXG830044 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AXG830044 have?

30 positions.

What is the pitch of the AXG830044?

0.35mm.

What is the current rating of the AXG830044?

Power terminals: 3.0A max per pin; signal terminals: 0.30A max per pin (total 5A max).

What is the voltage rating of the AXG830044?

60V AC/DC max.

What is the mounting type of the AXG830044?

Surface mount.

What is the operating temperature range?

-55°C to +85°C.

What is the mated stacking height?

0.6mm.
