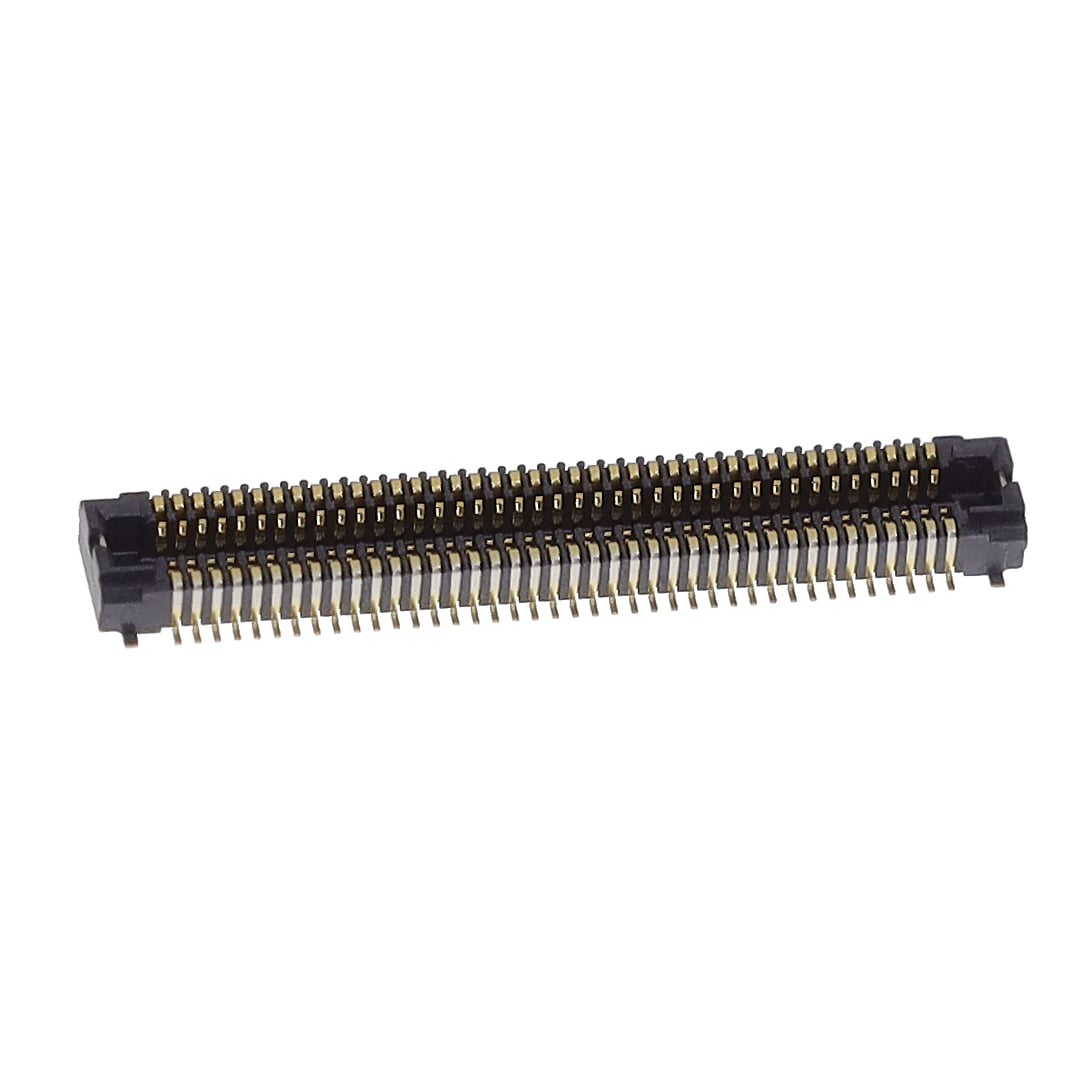

The Panasonic AXF5G8012A is a high-speed board-to-board connector socket featuring 80 positions in 2 rows with a 0.4mm pitch. It is designed for compact mezzanine stacking, with a mated height of 1.5mm and a height above board of 1.45mm. The socket has gold-plated contacts and a solder retention feature for secure mounting. Electrical specifications include a maximum signal current of 0.5A per pin, power current of 0.3A per pin, and a total current rating of 5A. Contact resistance is a maximum of 15mΩ, and the connector supports data rates up to 12Gbps. The connector is RoHS and REACH compliant, with MSL 1. The surface mount package is suitable for standard SMD assembly. This connector is ideal for DSC mobile devices, industrial equipment, and other high-density board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.27 | $3.27 |
| 10+ | $2.78 | $2.78 |
| 25+ | $2.60 | $2.60 |
| 50+ | $2.48 | $2.48 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.21 | $2.21 |
| 500+ | $2.11 | $2.11 |
| 1,000+ | $2.01 | $2.01 |
| 2,500+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 80 positions.
The pitch is 0.40mm.
Signal contacts: 0.5A max per pin; power contacts: 0.3A max per pin; total current 5A max.
Surface mount (SMD).
Gold.
Up to 12Gbps.
1.5mm.
