| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,842 pcs
|
3842 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
411 pcs
|
411 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

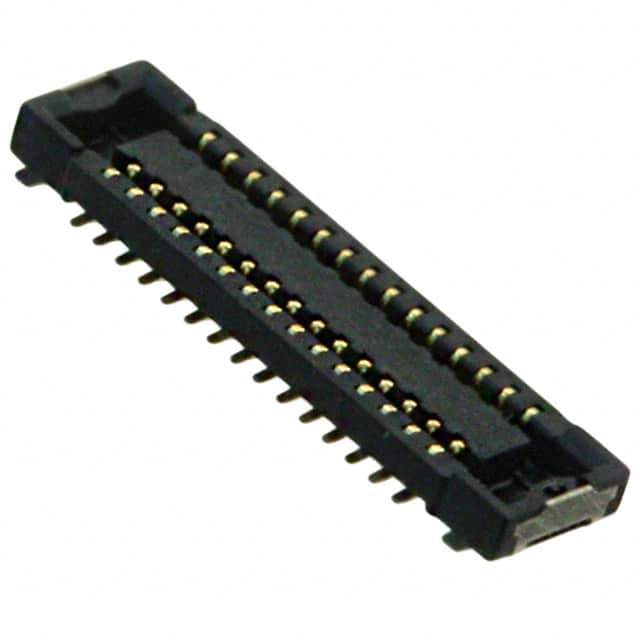

The Panasonic AXE530127 is a 30-position socket connector with a 0.4mm pitch, arranged in 2 rows. It features a surface mount design with a height above board of 0.75mm, supporting mated stacking heights of 0.8mm and 1mm. The contacts are finished with gold for corrosion resistance and reliable signal integrity. The connector includes a solder retention feature for secure attachment during reflow. This component is classified as a board-to-board socket with center strip contacts, suitable for mezzanine applications where compact stacking is required. It is compliant with RoHS3, REACH unaffected, and has an MSL rating of 1 (unlimited). The connector is unverified for electrical ratings such as current and voltage; refer to the manufacturer for detailed specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
| 10+ | $1.14 | $1.14 |
| 25+ | $1.07 | $1.07 |
| 50+ | $1.02 | $1.02 |
| 100+ | $0.97 | $0.97 |
| 250+ | $0.91 | $0.91 |
| 500+ | $0.86 | $0.86 |
| 1,000+ | $0.82 | $0.82 |
| 2,500+ | $0.78 | $0.78 |
| 5,000+ | $0.73 | $0.73 |
| 10,000+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions arranged in 2 rows.
0.40mm (0.016 inches).
Surface mount (SMD).
0.75mm (0.030 inches).
0.8mm and 1mm.
Gold.
Yes, it features solder retention.
