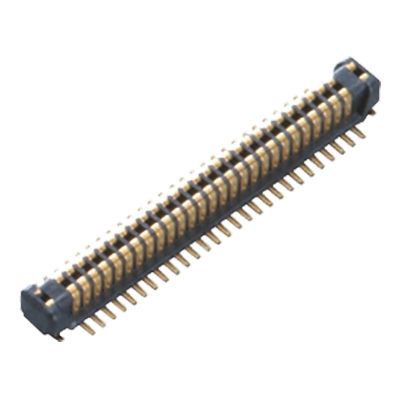

AXE410124 The AXE410124 is a 10-position, 0.4mm pitch header connector from Panasonic's A4F series. It features a surface mount design with gold contacts and a 0.6mm mated stacking height.
Mfr Part #:

AXE410124

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The AXE410124 is a 10-position, 0.4mm pitch header connector from Panasonic's A4F series. It features a surface mount design with gold contacts and a 0.6mm mated stacking height.
✓ Total Stock: 5,413 pcs

AXE410124 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,413 pcs
On Request
5413 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AXE410124 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Current Rating
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Storage Temperature
Termination Style
Voltage Rating
View Similar Products (0)

AXE410124 Description

Short technical summary and product information.

The AXE410124 is a 10-position, 0.4mm pitch header connector from Panasonic Electronic Components, part of the A4F series. It is designed for board-to-board applications requiring a low profile, with a mated stacking height of 0.6mm. The connector features a 2-row configuration with gold-plated contacts and solder retention for secure mounting.



This header connector is rated for 0.3A per pin (maximum 5A total) and 60V AC/DC, with a dielectric withstanding voltage of 150V AC for 1 minute. The surface mount design with gull-wing terminals facilitates visual inspection during assembly. The connector is RoHS compliant and suitable for use in compact electronic devices.



The A4F series is known for its space-saving design, with a width of 3.0mm, making it ideal for applications where board space is limited. The connector's simple lock structure provides tactile feedback for reliable mating and unmating. It is commonly used in mobile devices such as cellular phones, digital still cameras, and digital video cameras.



The AXE410124 is supplied in tape and reel packaging with a standard package quantity of 5000 pieces. The connector is designed for surface mount technology (SMT) assembly, and its low profile makes it suitable for high-density PCB designs.

AXE410124 Quick Information

Product Type: Board-to-Board Header Connector
Series: A4F
Canonical Name: Panasonic A4F Series 10 Position 0.4mm Pitch Header Connector, Surface Mount, Gold Contacts
Subcategory: Board-to-Board Connectors

AXE410124 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

AXE410124 Features

  • 10 positions in 2 rows.
  • 0.4mm pitch for compact designs.
  • 0.6mm mated stacking height.
  • Gold-plated contacts for reliability.
  • Surface mount with solder retention.

AXE410124 Applications

  • Ideal for board-to-board connections.
  • Used in mobile phones and cameras.
  • Suitable for compact electronic devices.
  • Perfect for low-profile PCB stacking.

AXE410124 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the AXE410124 connector?

The pitch is 0.40mm.

How many positions does the AXE410124 have?

It has 10 positions arranged in 2 rows.

What is the current rating of the AXE410124?

The current rating is 0.3A per pin, with a maximum total of 5A.

What is the voltage rating of the AXE410124?

The voltage rating is 60V AC/DC.

What is the mounting type of the AXE410124?

The mounting type is surface mount.

What is the mated stacking height of the AXE410124?

The mated stacking height is 0.6mm.

What is the contact finish of the AXE410124?

The contact finish is gold.
