| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,050 pcs
|
5050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The AX8052F143-3-TX30 from On Semiconductor is a versatile RF Transceiver IC that also integrates a microcontroller. Designed for applications operating in the General ISM < 1GHz frequency band, it supports protocols such as Sigfox, Wireless M-Bus, and Z-Wave.
This device features a wide operating voltage range of 1.8V to 3.6V and consumes between 6.5mA and 11mA. It offers a maximum output power of 16dBm and a high receiver sensitivity of -137dBm, making it suitable for various wireless communication tasks. The integrated MCU includes 64kB of Flash memory and 8.25kB of SRAM.

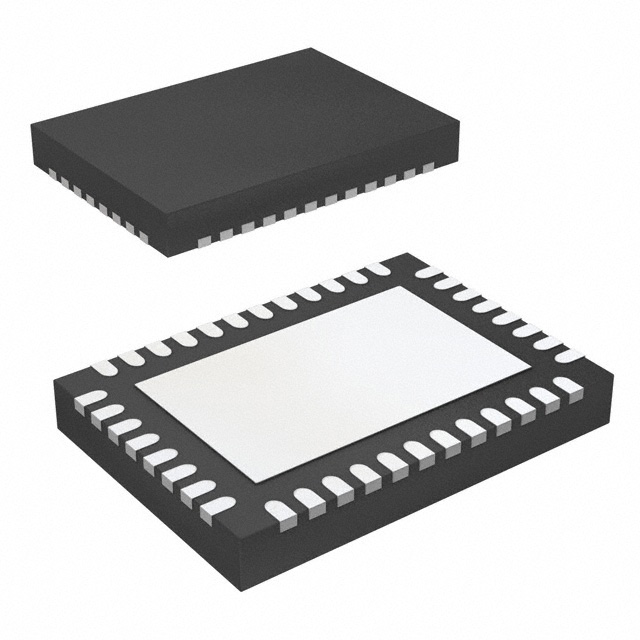

Packaged in a 40-VFQFN Exposed Pad (40-QFN 7x5), the AX8052F143-3-TX30 is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C and supports serial interfaces like SPI and UART, along with 19 GPIO pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
The maximum output power is 16dBm.
The receiver sensitivity is -137dBm.
It supports Sigfox, Wireless M-Bus, and Z-Wave protocols.
The package type is 40-VFQFN Exposed Pad.
The operating temperature range is -40°C to 85°C.
