| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| Lead Spacing | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage |
The AX5051-1-TW30 from ON Semiconductor is an RF Transceiver IC suitable for general ISM band applications below 1GHz. It operates within a frequency range of 400MHz to 470MHz and 800MHz to 940MHz, supporting modulation schemes such as ASK, FSK, MSK, O-QPSK, and PSK. This device features a maximum data rate of 600kbps and a sensitivity of -116dBm, with a transmit power of 16dBm.

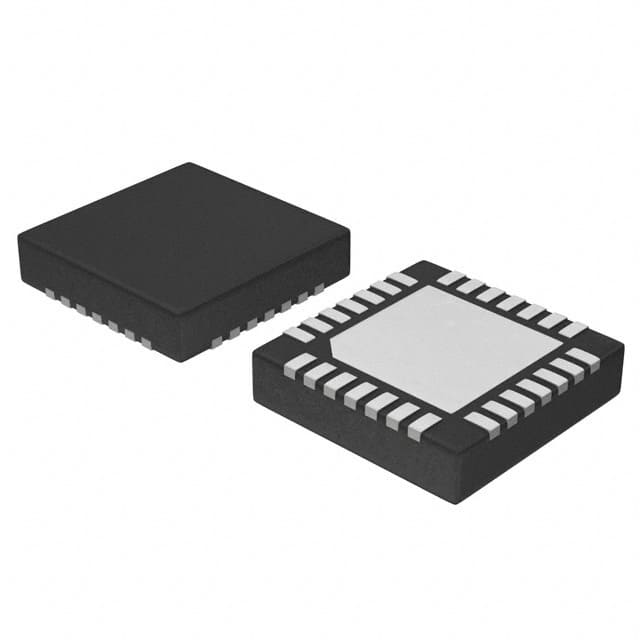

Designed for surface mounting, the AX5051-1-TW30 comes in a 28-VFQFN Exposed Pad package, with a supplier device package of 28-QFN (5x5). It operates with a current draw of 17mA to 19mA and requires an operating voltage between 2.2V and 3.6V. The component is rated for an operating temperature range of -40°C to 85°C.
This RF transceiver IC utilizes SPI serial interfaces for communication. It is classified under the General ISM < 1GHz RF family, making it suitable for various wireless communication designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AX5051-1-TW30 operates in the 400MHz to 470MHz and 800MHz to 940MHz frequency bands.
The maximum data rate for the AX5051-1-TW30 is 600kbps.
The sensitivity of the AX5051-1-TW30 is -116dBm.
This device supports ASK, FSK, MSK, O-QPSK, and PSK modulation.
The operating voltage range for the AX5051-1-TW30 is 2.2V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 28-VFQFN Exposed Pad package.
