Mfr Part #:

AX500-2PQG208

The Microsemi Corporation AX500-2PQG208 is an FPGA with 500,000 system gates and 336 I/O pins. It features 73,728 bits of onboard RAM and operates within a supply voltage range of 1.425V to 1.575V.

✓ Total Stock: 2,240 pcs

$ Price Range: $22.15

AX500-2PQG208 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,240 pcs On Request	2240 pcs	On Request	1	On Request	On Request	24+	On Request	On Request

AX500-2PQG208 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Microsemi Corporation
Lead Style	Gull Wing
Mounting Type	Surface Mount
Number of Gates	500,000
Number of I/O	336
SVHC Present	Not Present
Voltage	1.425V to 1.575V

View Similar Products (0)

AX500-2PQG208 Description

Short technical summary and product information.

The Microsemi Corporation AX500-2PQG208 is a high-performance FPGA from the Axcelerator series. It offers a substantial capacity of 500,000 system gates and supports up to 336 input/output connections, making it suitable for complex logic and interface functions.

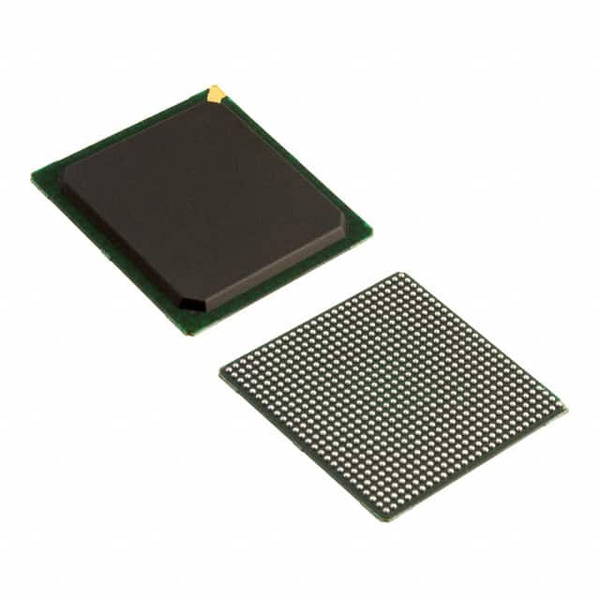

This FPGA includes 73,728 bits of onboard RAM for temporary data storage. It operates reliably over a commercial temperature range of 0°C to 70°C with a supply voltage requirement between 1.425V and 1.575V. The device is housed in a 676-ball Fine Ball Grid Array (FBGA) package, measuring 27x27mm, designed for robust surface mounting.

Applications for the AX500-2PQG208 include digital circuit prototyping, industrial electronics, telecom infrastructure, signal processing, data interfaces, and custom embedded computing. It is well-suited for environments demanding programmable logic, flexibility, and a high I/O count. Note that this part is not recommended for harsh temperature or RoHS-restricted applications.

AX500-2PQG208 Quick Information

Product Type: FPGA

Series: Axcelerator

Canonical Name: Microsemi Corporation AX500-2PQG208 FPGA

Subcategory: Field Programmable Gate Array

AX500-2PQG208 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

AX500-2PQG208 Estimated Pricing

Qty	Low	High
1+	$22.15	$22.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

AX500-2PQG208 Features

500,000 system gates capacity.
Supports 336 input/output connections.
Includes 73,728 bits of onboard RAM.
Operates at 1.425V to 1.575V supply voltage.
Packaged in a 676-FBGA for surface mounting.

AX500-2PQG208 Applications

Ideal for digital circuit prototyping.
Suitable for industrial electronics.
Used in telecom infrastructure.
Supports signal processing applications.
Applicable to custom embedded computing.

AX500-2PQG208 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the gate capacity of the AX500-2PQG208 FPGA?

The AX500-2PQG208 FPGA has a capacity of 500,000 system gates.

How many I/O pins does the AX500-2PQG208 offer?

The AX500-2PQG208 offers 336 input/output pins.

What is the total RAM bit count for the AX500-2PQG208?

The AX500-2PQG208 has a total of 73,728 bits of onboard RAM.

What is the operating supply voltage range for the AX500-2PQG208?

The operating supply voltage for the AX500-2PQG208 is between 1.425V and 1.575V.

What is the operating temperature range for this FPGA?

The operating temperature range for the AX500-2PQG208 is 0°C to 70°C.

What type of package is the AX500-2PQG208 supplied in?

The AX500-2PQG208 is supplied in a 676-FBGA package.
