Mfr Part #:

AX12M

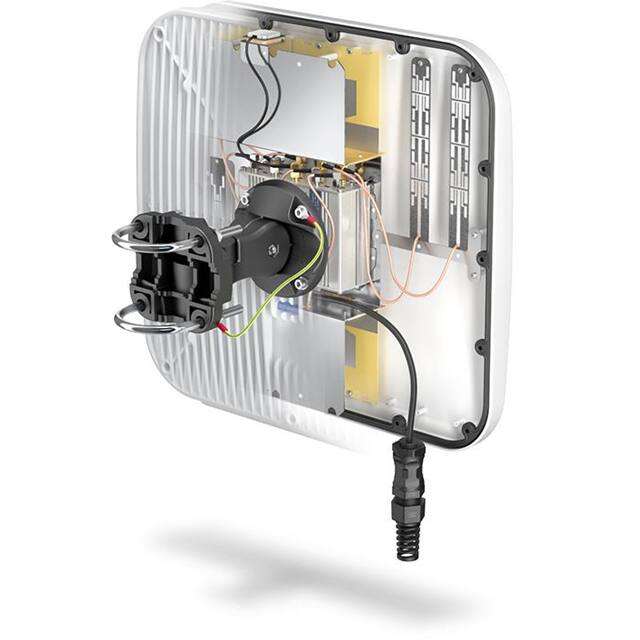

Name: AX12M
Brand: QuWireless
SKU: AX12M

Mfr Name: QuWireless

Description:

2X SECTOR LTE + WI-FI DUAL BAND

Stock on Request

AX12M Description

Short technical summary and product information.

2X SECTOR LTE + WI-FI DUAL BAND

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	QuWireless
Antenna Type	Module
Applications	Bluetooth, GPS, LTE, Wi-Fi
Frequency (Center	827MHz, 1.95GHz, 2.45GHz, 2.45GHz, 2.45GHz, 5.35GHz
Frequency Group	Wide Band
Frequency Range	1.7GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.3GHz ~ 2.6GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 6GHz
Gain	4dBi, 5dBi, 6dBi, 3dBi, 6dBi, 7dBi
Height (Max)	3.780" (96.00mm)
Ingress Protection	IP67
Mounting Type	Bracket Mount
Number of Bands	6
RF Family	Bluetooth, Cellular, Navigation, WiFi
Termination	RJ45
VSWR	1.8, 2
