| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Modulation | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supply Current | |
| Type | |
| Voltage |
The ON Semiconductor AX-SFAZ-1-01-TX30 is an RF System on a Chip (SoC) that integrates a radio transceiver with a microcontroller. Designed for ISM band applications below 1GHz, this device supports the SIGFOX protocol, making it suitable for low-power, long-range communication.
Key electrical specifications include an operating supply voltage range of 2.7V to 3.6V, a maximum output power of 24dBm, and a sensitivity of -128dBm. It supports data rates up to 600bps and operates at frequencies around 922.3MHz. The device features UART and SPI serial interfaces and includes 8 GPIO pins.

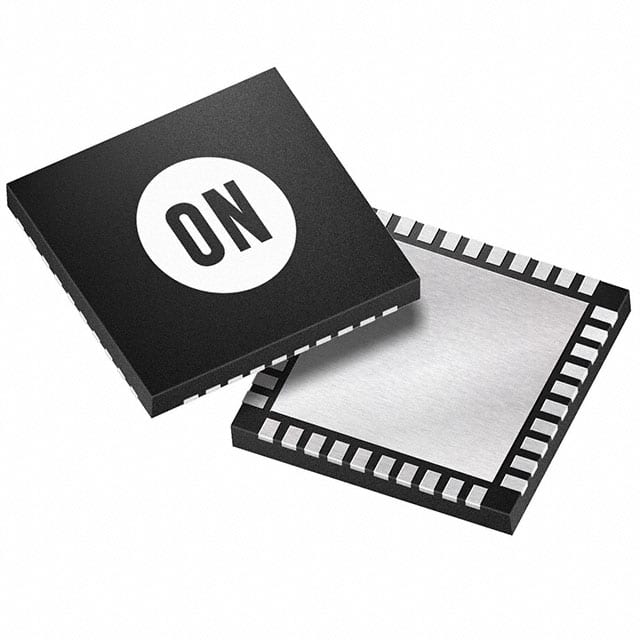

This component is designed for surface mount (SMD/SMT) installation and comes in a 40-QFN (7x5) package, supplied on a reel. It operates within a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage for the AX-SFAZ-1-01-TX30 is 2.7V to 3.6V.
The AX-SFAZ-1-01-TX30 is supplied in a 40-QFN (7x5) package.
The operating temperature range for the AX-SFAZ-1-01-TX30 is -40°C to +85°C.
The AX-SFAZ-1-01-TX30 is RoHS3 Compliant.
The maximum output power is 24dBm.
The maximum data rate is 600bps.
The operating frequency is 922.3 MHz.
