| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,578 pcs
|
2578 pcs | On Request | 1 | On Request | On Request | 1506+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Operating Temperature | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

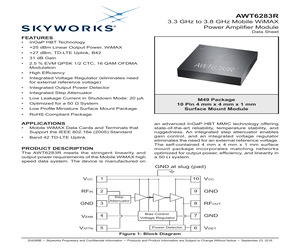

The Skyworks Solutions AWT6283RM49P8 is a high-performance power amplifier module utilizing InGaP HBT MMIC technology. It is optimized for Mobile WiMAX and Band 42 TD-LTE uplink applications, meeting stringent linearity and output power requirements.
This module operates across a frequency range of 3.3 GHz to 3.8 GHz, offering a typical gain of 37.5 dB and a P1dB output power of +25 dBm. It features an integrated voltage regulator, step attenuator, and output power detector, simplifying external circuitry. The device requires a supply voltage between 3 V and 4.2 V and draws a typical current of 145 mA.
The AWT6283RM49P8 is housed in a low-profile, miniature 10-pin M49 surface mount package measuring 4 mm x 4 mm x 1 mm. It is designed for a 50 Ω system and is supplied on tape and reel, making it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 3.3 GHz to 3.8 GHz.
The typical gain is 37.5 dB.
The output power (P1dB) is 25 dBm.
The typical operating current is 145 mA.
The operating voltage range is 3 V to 4.2 V.
It is in a 10-SMD (4x4) M49 package.
The operating temperature range is -40°C to 85°C.
