| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,300 pcs
|
2300 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| VSWR |

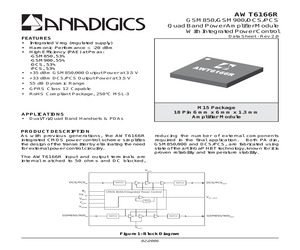

The Anadigics AWT6166RM15P8 is a narrow band medium power amplifier module. It is designed to operate within the 824 MHz to 849 MHz frequency range, making it suitable for specific RF applications.
This module features a characteristic impedance of 50 ohms and a maximum VSWR of 2.5. The maximum continuous wave (CW) input power is rated at 11 dBm. The operating temperature range for this component is from -20°C to 85°C.
The AWT6166RM15P8 comes in an 18-pin package with dimensions of 6 x 6 mm and a height of 1.30 mm. It is designed for surface mount applications.
This component is RoHS3 compliant and REACH unaffected, with a Moisture Sensitivity Level (MSL) of 1. The terminal finish is matte tin.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AWT6166RM15P8 operates from 824 MHz to 849 MHz.
The characteristic impedance is 50 ohm.
The maximum VSWR is 2.5.
The maximum CW input power is 11 dBm.
The operating temperature range is -20°C to 85°C.
The package is 6 x 6 MM with a height of 1.30 MM and has 18 pins.
Yes, it is RoHS3 Compliant.
