| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

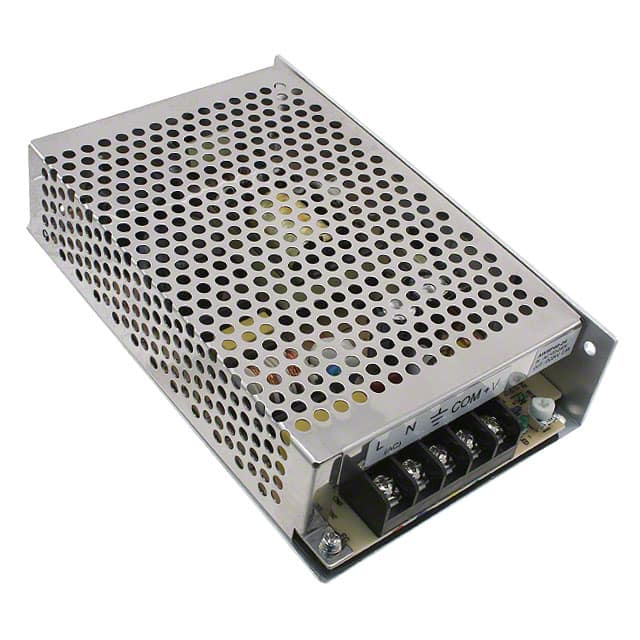

The Triad Magnetics AWSP60-5 is an enclosed AC/DC power supply designed for industrial and telecommunications applications. It provides a single 5Vdc output with a maximum current of 12A, delivering a total of 60W of power.
This power supply operates with a universal input voltage range of 85-264Vac and features adjustable output voltage within ±10%. Key electrical specifications include a line regulation of ±0.5%, load regulation of ±1.0%, and an efficiency of 73%. It is equipped with over-current, over-voltage, and short-circuit protection for reliability.
The AWSP60-5 has a compact form factor with dimensions of 160mm x 98mm x 38mm and is designed for chassis mounting. It operates within an ambient temperature range of -10°C to 60°C and is cooled by natural convection or forced air. The unit meets European EMC standards (EN55022 Class B) and Low Voltage directive requirements, with safety approvals from TUV and UR.
85-264Vac.
5Vdc at 12A.
-10°C to 60°C (with derating).
Enclosed chassis mount.
UL 60950 (UL File No: E204980), also TUV, UR.
Over current protection (shutdown at >120% load), over voltage protection (zener clamping at >110%), short circuit protection.
73%.
