| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

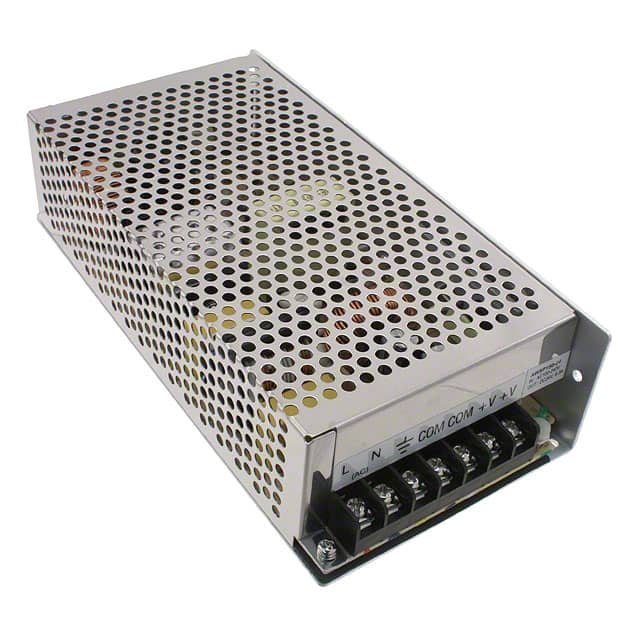

The Triad Magnetics AWSP150-5 is a single-output AC/DC power supply designed for industrial and telecommunications applications requiring high reliability. This enclosed unit delivers 150W of power with a stable 5Vdc output at 30A.
Key electrical specifications include a universal input voltage range of 88-264Vac, an efficiency of 75%, and power factor correction greater than 0.92. It features adjustable output voltage within ±10%, load regulation of ±1.0%, and line regulation of ±0.5%. Protection features include over-current and over-voltage protection.
The power supply operates within an ambient temperature range of -10°C to 60°C and is cooled by natural convection. Its dimensions are 199mm x 98mm x 50mm, and it is designed for chassis mounting.
Compliance includes European EMC standards (EN55022 Class B) and safety approvals such as UL 60950, TUV, CE, cRU, and RU, making it suitable for various global markets.
The AWSP150-5 power supply has a nominal output voltage of 5Vdc and a nominal output current of 30.0A.
The maximum output power for the AWSP150-5 is 150W.
The AWSP150-5 accepts an input voltage range of 88-264Vac.
The efficiency of the AWSP150-5 power supply is 75%.
The operating temperature range for the AWSP150-5 is -10°C to 60°C.
The AWSP150-5 is RoHS3 Compliant.
