| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

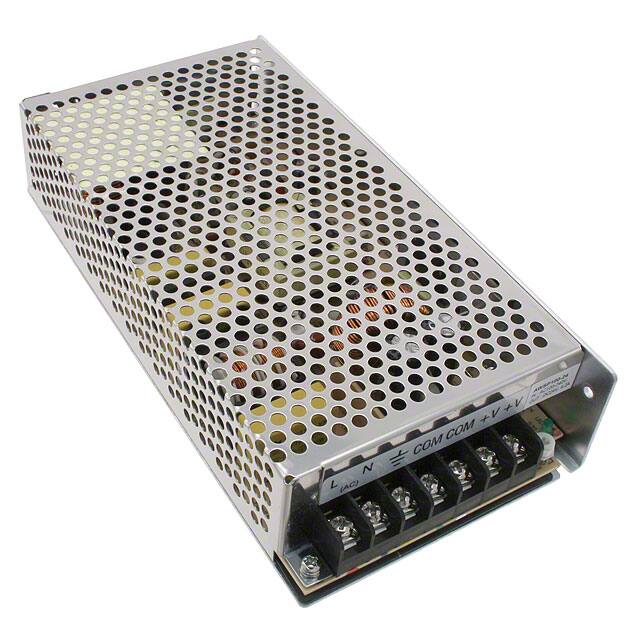

The Triad Magnetics AWSP100-24 is a single output, enclosed AC/DC power supply designed for industrial and telecommunications applications requiring high reliability. It delivers 100W of power with a 24Vdc output voltage and a maximum current of 4.2A.
Key electrical specifications include a wide input voltage range of 88-264Vac, an efficiency of 84%, and features like adjustable output (±10%) and universal input. The power supply also incorporates over-current and over-voltage protection.
With dimensions of 199mm x 98mm x 42mm, this unit is designed for chassis mounting and utilizes natural convection for cooling. It meets various EMC and safety standards, including EN55022 Class B and UL 60950.
The AWSP100-24 is suitable for applications demanding stable power conversion and compliance with European directives.
The output voltage is 24Vdc.
The maximum output current is 4.2A.
The input voltage range is 88-264Vac.
The efficiency is 84%.
The dimensions are 199.0mm x 98.0mm x 42.0mm.
The operating temperature range is -10°C to 60°C.
Yes, over voltage protection is at 125%<Load<145%@I/P:115/230VAC.
