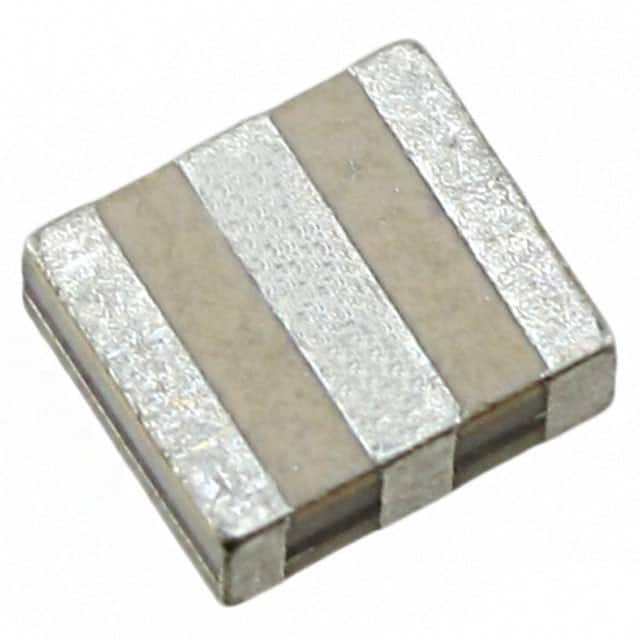

AWSCR-16.00MTD-T Ceramic resonator with built-in capacitor, 16 MHz frequency, 22 pF capacitance, surface mount package.
Mfr Part #:

AWSCR-16.00MTD-T

Available from 2 distributors
Mfr Name: Abracon LLC
Abracon LLC
Ceramic resonator with built-in capacitor, 16 MHz frequency, 22 pF capacitance, surface mount package.
✓ Total Stock: 1,020 pcs
$ Price Range: $0.31 - $0.53

AWSCR-16.00MTD-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AWSCR-16.00MTD-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Features
Frequency
Frequency Stability
Frequency Tolerance
Halogen Free
Height
Impedance
Industrial Grade
Insulation Resistance
Length
Mounting Type
Operating Temperature
SVHC Present
Tape & Reel
Type
Width
View Similar Products (0)

AWSCR-16.00MTD-T Description

Short technical summary and product information.

The AWSCR-16.00MTD-T is a ceramic resonator from Abracon LLC featuring built-in load capacitance. It operates at a resonant frequency of 16 MHz with a frequency tolerance and stability of ±0.5%. The resonator has a low resonant impedance of 40 Ω and includes an integrated 22 pF capacitor, eliminating the need for external load capacitors in many applications.



This industrial-grade component is designed for surface mount assembly in a 3-SMD non-standard package measuring 4.70 mm x 4.10 mm x 1.70 mm. It operates over a temperature range of -40°C to 85°C and offers an aging rate of ±0.3% maximum over 10 years. The insulation resistance is 500 MΩ minimum.



Typical applications include microprocessor clocks, remote controls, mobile phones, DVD and CD-ROM drives, electric appliances, and industrial controllers. The resonator is RoHS compliant and reflow capable.

AWSCR-16.00MTD-T Quick Information

Product Type: Ceramic Resonator
Series: AWSCR-MTD
Canonical Name: AWSCR-16.00MTD-T Ceramic Resonator
Subcategory: Resonators

AWSCR-16.00MTD-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

AWSCR-16.00MTD-T Estimated Pricing

Qty Low High
1+ $0.53 $0.53
10+ $0.46 $0.46
25+ $0.42 $0.42
100+ $0.40 $0.40
250+ $0.38 $0.38
500+ $0.36 $0.36
1,000+ $0.35 $0.35
2,000+ $0.32 $0.32
5,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

AWSCR-16.00MTD-T Features

  • Built-in load capacitance eliminates external capacitors.
  • Industrial grade with high stability.
  • Surface mount package 4.7 x 4.1 mm.
  • Low resonant impedance of 40 Ω.
  • RoHS compliant.

AWSCR-16.00MTD-T Applications

  • Ideal for microprocessor clock circuits.
  • Used in remote control applications.
  • Suitable for industrial controllers.
  • Applicable in mobile phones and DVD players.

AWSCR-16.00MTD-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to 85°C.

What is the package type?

3-SMD, Non-Standard surface mount package.

Is this component RoHS compliant?

Yes, RoHS3 compliant as per datasheet.

What is the resonant frequency?

16 MHz.

What is the built-in capacitance?

22 pF.

What is the resonant impedance?

40 Ω.

What is the mounting type?

Surface mount.
