| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,415 pcs
|
5415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Flow Sensor Type | |
| Lead Spacing | |
| Material | |
| Operating Temperature | |
| Operating Voltage | |
| Port Size | |
| Power Consumption | |
| Response Time | |
| Sensing Range | |
| Voltage |

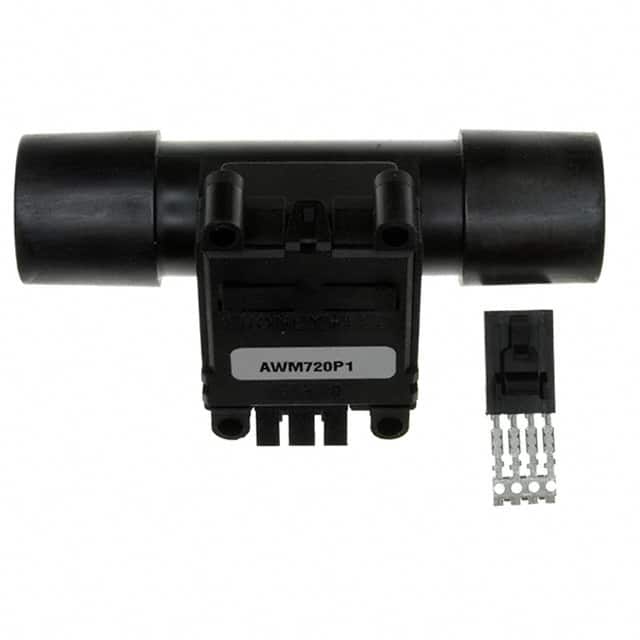

The Honeywell AWM700 Series AWM720P1 is a compensated and amplified airflow sensor providing in-line flow measurement. It features a high flow range capability of up to 200 standard liters per minute (SLPM) with a low pressure drop. The sensor has a fast response time of 6 ms and consumes only 60 mW of power, making it suitable for portable and battery-powered applications.
Constructed with a silicon housing, the AWM720P1 operates within a voltage range of 8V to 15V. Its compact package design occupies less space in enclosures, potentially reducing production costs. The sensor is designed for reliability and accuracy, reducing the need for recalibration. It is well-suited for medical ventilation markets and analytical instrumentation applications.
The AWM720P1 has a port size of Male, 0.8661" (22mm) and an operating temperature range of -25°C to 85°C. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AWM720P1 has a sensing range of 200 SLPM.
The AWM720P1 operates within a voltage range of 8V to 15V.
The operating temperature range is -25°C to 85°C.
Yes, the AWM720P1 is RoHS3 Compliant.
The MSL is 1 Unlimited.
