Mfr Part #:

AUIRS21811STR

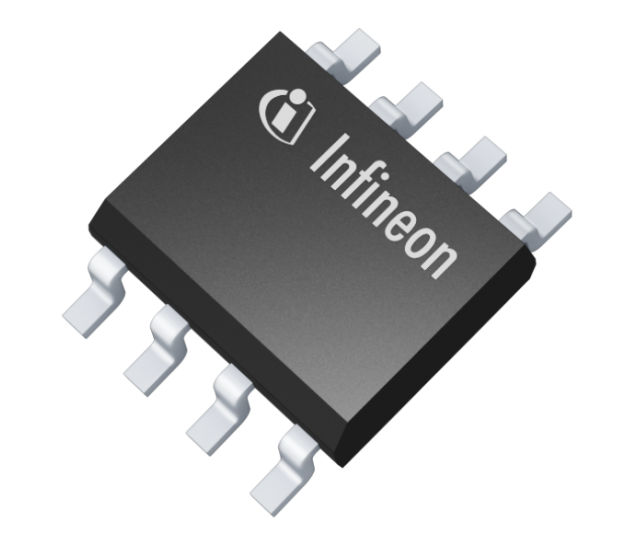

The Infineon Technologies AUIRS21811STR is a high and low side gate driver IC designed for power MOSFET and IGBT applications. It operates up to 600V with a 10-20V gate drive supply.

✓ Total Stock: 11,992 pcs

$ Price Range: $3.13

AUIRS21811STR Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	5,914 pcs On Request	5914 pcs	On Request	1	On Request	On Request	1637+	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	4,392 pcs On Request	4392 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,606 pcs On Request	1606 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	80 pcs On Request	80 pcs	On Request	1	On Request	On Request	22+	On Request	On Request

AUIRS21811STR Description

Short technical summary and product information.

The AUIRS21811STR from Infineon Technologies is a high voltage, high speed power MOSFET and IGBT driver. It features independent high and low side referenced output channels, making it suitable for half-bridge configurations. The device is fully operational to 600V and tolerates negative transient voltage with dV/dt immunity.

Key electrical specifications include a gate drive supply range of 10V to 20V and logic voltage compatibility down to 3.3V. The output drivers provide a typical source current of 1.9A and a sink current of 2.3A. Matched propagation delays and a lower di/dt gate driver enhance noise immunity.

This component is housed in an 8-SOIC package with a surface mount type. It operates within a temperature range of -40°C to 150°C (TJ). The AUIRS21811STR is designed for applications such as electric power steering, fan and compressor control, and starter/alternator systems.

AUIRS21811STR Quick Information

Product Type: Gate Driver

Canonical Name: AUIRS21811S High and Low Side Driver

Subcategory: High and Low Side Driver

AUIRS21811STR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AUIRS21811STR Estimated Pricing

Qty	Low	High
1+	$3.13	$3.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

AUIRS21811STR Features

High and low side driver topology.
Fully operational to 600V.
10V to 20V gate drive supply range.
1.9A source and 2.3A sink current.
Surface mount 8-SOIC package.

AUIRS21811STR Applications

Suitable for piezo injection.
Used in electric power steering.
Applicable for fan and compressor.
Designed for starter/alternator systems.

AUIRS21811STR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the gate drive supply voltage range?

10V to 20V.

What is the operating temperature range?

-40°C to 150°C junction.

What package is this device available in?

8-SOIC surface mount package.

What is the maximum high-side voltage?

600V.

What output source and sink currents does it provide?

1.9A typical source and 2.3A typical sink current.

What is the propagation delay?

135ns typical.

Which gate types can this driver control?

IGBT and N-Channel MOSFET.

Category	Gate Drivers
Manufacturer Name	Infineon Technologies
AEC Qualified	Yes
Automotive Grade	Yes
Channel Type	Independent
Current	1.9A, 2.3A
Driven Configuration	Half-Bridge
Gate Type	IGBT, N-Channel MOSFET
High Side Voltage	600 V
Industrial Grade	Yes
Input Type	Non-Inverting
Logic Voltage	0.8V / 2.5V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature	-40°C / 150°C
Propagation Delay	135 ns
Rise	60 ns / 35 ns
Supplier Device Package	8-SOIC
Supplier Package	8-SOIC
Tape & Reel	Yes
Topology	High and Low Side Driver
Voltage	10V ~ 20V
