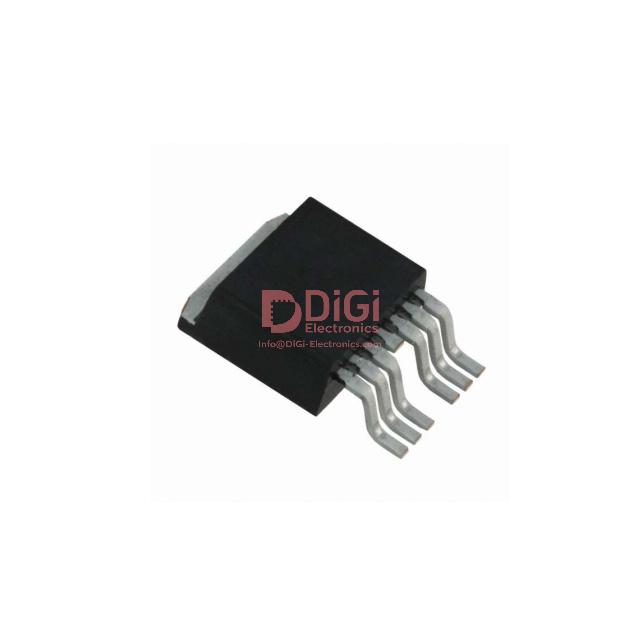

AUIRF3805L The Infineon Technologies AUIRF3805L-7P is an N-Channel MOSFET with a 55V drain-to-source voltage and a continuous drain current of 160A. It is housed in a TO-262 package.
Mfr Part #:

AUIRF3805L

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon Technologies AUIRF3805L-7P is an N-Channel MOSFET with a 55V drain-to-source voltage and a continuous drain current of 160A. It is housed in a TO-262 package.
✓ Total Stock: 900 pcs
$ Price Range: $0.99

AUIRF3805L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AUIRF3805L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
FET Type
Failure Rate
Mounting Type
Package / Case
Technology
View Similar Products (0)

AUIRF3805L Description

Short technical summary and product information.

The Infineon Technologies AUIRF3805L-7P is an N-Channel MOSFET designed for power applications. It features a drain-to-source voltage (Vdss) of 55V and can handle a continuous drain current (Id) of 160A at 25°C.



Key electrical characteristics include a maximum on-resistance (Rds On) of 2.6 mOhm at 140A and 10V gate-source voltage, a gate threshold voltage (Vgs(th)) of 4V at 250µA, and a maximum gate-source voltage (Vgs) of ±20V. The input capacitance (Ciss) is rated at a maximum of 7820 pF at Vds.



This MOSFET has a power dissipation of 300W (Tc) and is supplied in a TO-262 package. It is designed for through-hole mounting.



This obsolete part is suitable for applications requiring high current handling and specific voltage ratings within its operational parameters.

AUIRF3805L Quick Information

Product Type: MOSFET
Series: HEXFET®
Canonical Name: Infineon Technologies AUIRF3805L-7P N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

AUIRF3805L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AUIRF3805L Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AUIRF3805L Features

  • N-Channel MOSFET with 55V drain-source voltage.
  • Continuous drain current of 160A at 25°C.
  • Low on-resistance of 2.6 mOhm at 140A, 10V.
  • TO-262 package for through-hole mounting.
  • Product status is obsolete.

AUIRF3805L Applications

  • Used in high-current switching circuits
  • Suitable for power supply applications
  • Ideal for load switching in automotive electronics
  • Applicable in motor control circuits

AUIRF3805L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage for the AUIRF3805L-7P?

The drain-to-source voltage is 55 V.

What is the continuous drain current of the AUIRF3805L-7P at 25°C?

The continuous drain current is 160 A (Tc).

What is the maximum on-resistance for the AUIRF3805L-7P?

The maximum on-resistance is 2.6 mOhm at 140A and 10V.

What is the package type for the AUIRF3805L-7P?

The package type is TO-262.

What is the mounting type for the AUIRF3805L-7P?

The mounting type is Through Hole.
