| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
857 pcs
|
857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The AUIRF1324WL is an N-Channel power MOSFET from Infineon Technologies, designed for automotive applications. It features a drain-source breakdown voltage of 24V and a continuous drain current of 240A (package limited) or 382A (silicon limited). The device offers an ultra-low on-resistance of 1.3 mOhm maximum (1.16 mOhm typical) at Vgs=10V, enabling high efficiency and reduced conduction losses.

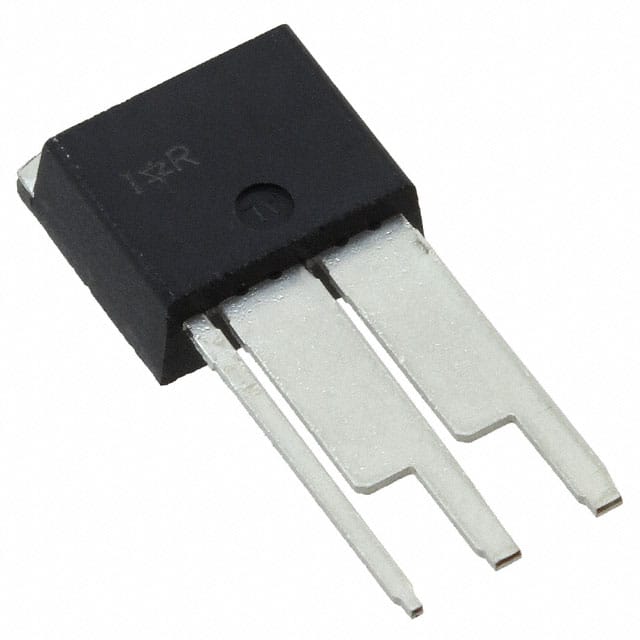

This MOSFET is housed in a TO-262-3 wide leads through-hole package, which provides over 50% lower lead resistance compared to traditional TO-262 packages. It supports a maximum operating junction temperature of 175°C and has a power dissipation of 300W. The device is automotive qualified and RoHS compliant, making it suitable for harsh environments.
Key electrical characteristics include a gate threshold voltage of 4V, gate charge of 180 nC, and input capacitance of 7630 pF. The fast switching capability and repetitive avalanche rating allow for robust performance in demanding applications such as automotive engine control units, power distribution, and DC-DC converters.
24V minimum.
240A continuous (package limited) or 382A (silicon limited) at Tc.
1.3 mOhm maximum (1.16 mOhm typical) at Vgs=10V, Id=195A.
TO-262-3 wide leads through-hole package.
-55°C to 175°C junction temperature.
Yes, it is RoHS3 compliant and lead-free.
Yes, it is automotive qualified.
