| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Differential | |
| Divider | |
| Frequency | |
| Frequency Range | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

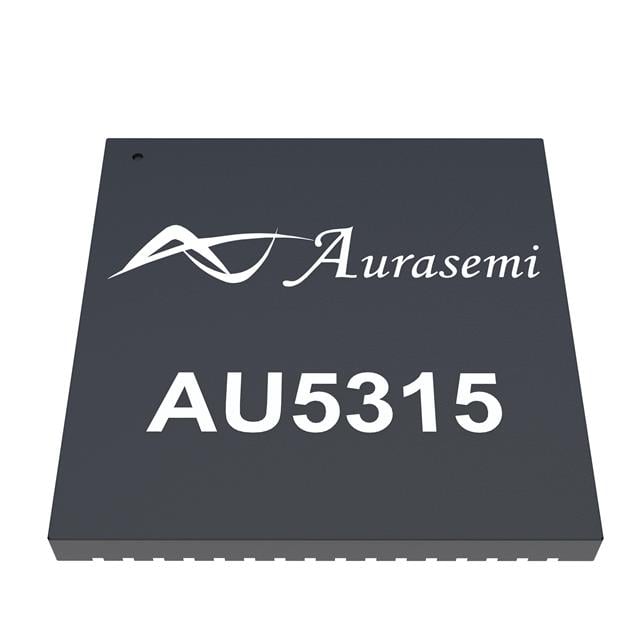

The AU5315AC0-QMR is a jitter attenuator integrated circuit from Aurasemi, designed for clock cleaning and frequency synthesis applications. It features an integrated PLL and supports differential input and output with multiple logic standards including CML, HCSL, LVCMOS, LVDS, and LVPECL. The device operates over a frequency range from 8 kHz to 2.1 GHz and includes a divider function.
This jitter attenuator provides four independent clock circuits, making it suitable for multi-channel systems. It accepts a wide range of input signals including CML, crystal, HCSL, LVCMOS, LVDS, and LVPECL. The supply voltage can be either 2.375V to 2.625V or 2.97V to 3.63V, offering flexibility in system power design.
The AU5315AC0-QMR is housed in a 64-VFQFN exposed pad package (64-QFN 9x9) and is surface mount compatible. It operates over an industrial temperature range of -40°C to 85°C. The device is RoHS3 compliant, though this compliance status is unverified.
2.375V to 2.625V and 2.97V to 3.63V.
64-VFQFN Exposed Pad (64-QFN 9x9).
-40°C to 85°C.
RoHS3 Compliant (unverified).
2.1 GHz.
CML, HCSL, LVCMOS, LVDS, LVPECL.
4 circuits.
