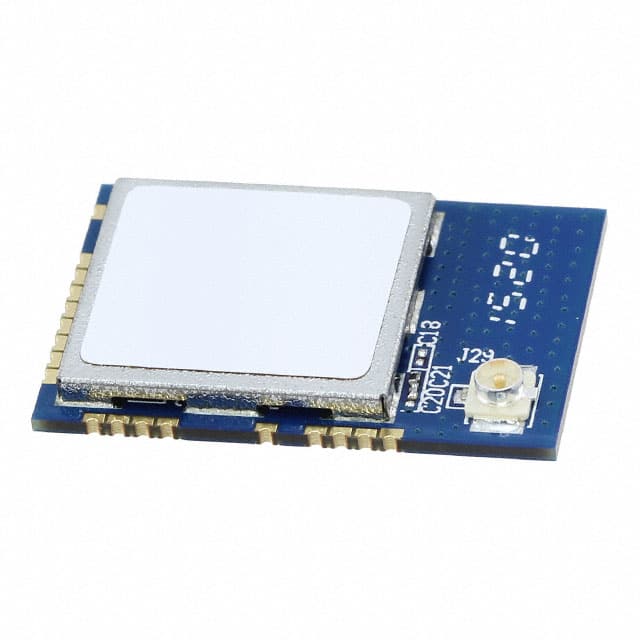

The ATWINC1500-MR210UB from Microchip Technology is a compact RF transceiver module designed for WiFi 802.11b/g/n communication. It operates in the 2.4GHz frequency band, offering a maximum data rate of 72.2Mbps.
Key electrical specifications include an output power of 19.5dBm and a sensitivity of -98dBm. The module supports multiple modulation schemes such as 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK. It interfaces via I²C, SPI, and UART, and includes 4MB of Flash memory and 128kB of RAM.
This module requires a supply voltage ranging from 3V to 4.2V, with receiving currents between 52.5mA and 70.1mA, and transmitting currents from 132mA to 294mA. It is designed for surface mounting and operates within an extended temperature range of -40°C to 85°C.
The ATWINC1500-MR210UB comes in a module package and has an antenna connector type of U.FL, with the antenna not included. It is supplied in a standard package of 50 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 2.4 GHz.
The data rate is 72.2 Mbps.
The supply voltage range is 3V to 4.2V.
The supported serial interfaces are I²C, SPI, and UART.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 3 (168 Hours).
