| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,195 pcs
|
23195 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Supply |
The ATWILC1000B-UU-T from Microchip Technology is a highly integrated RF Transceiver IC featuring an embedded MCU, designed for WiFi 802.11b/g/n applications. It operates in the 2.4GHz frequency band, offering a maximum data rate of 72.2Mbps. This device supports various modulation schemes including CCK, DSSS, and OFDM.
Key electrical specifications include an output power of 20.5dBm and a sensitivity of -98dBm. It is equipped with 128kB ROM and 224kB RAM, and supports serial interfaces such as I2C, SDIO, SPI, and UART. The operating voltage range is from 1.62V to 3.6V, with receiving current draw between 52.5mA and 58.5mA, and transmitting current between 244mA and 294mA.

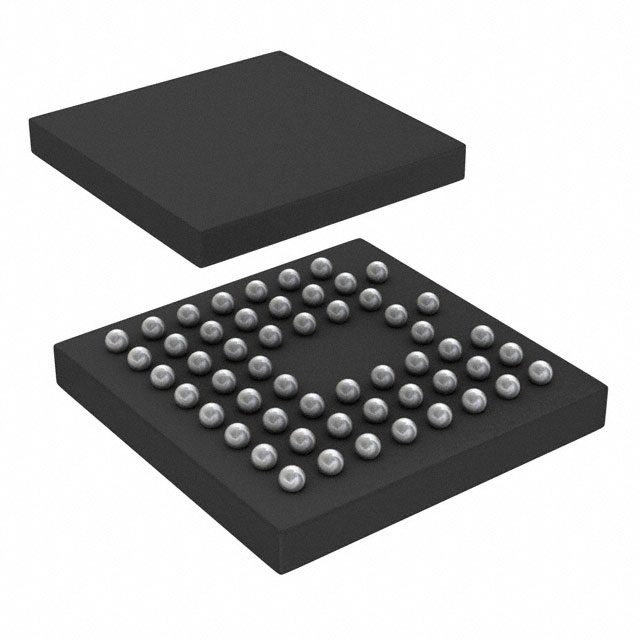

Designed for surface mounting, the ATWILC1000B-UU-T comes in a 55-UFBGA, WLCSP package, specifically a 55-WLCSP measuring 3.25x3.25mm. It operates within a temperature range of -40°C to 85°C. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.62V to 3.6V.
It is available in a 55-UFBGA, WLCSP package.
The operating temperature range is -40°C to 85°C.
The product is RoHS3 Compliant.
