| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,196 pcs
|
23196 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

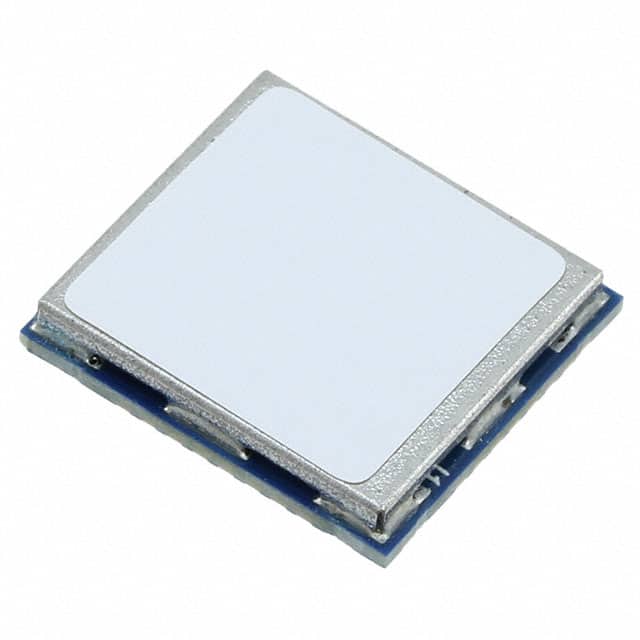

The Microchip Technology ATWILC1000-MR1100B is a WiFi RF transceiver module suitable for various wireless communication applications. This module operates in the 2.4GHz frequency band and supports the 802.11b/g/n protocols, offering a data rate of up to 72.2Mbps.
Key electrical characteristics include an operating voltage range of 3V to 4.2V and an operating current consumption between 29mA and 68mA. The module provides an output power of 19dBm and a receiver sensitivity of -98dBm. It supports multiple modulation schemes including 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK. Interface options include I²C, SDIO, SPI, and UART.
Designed for surface mounting, the ATWILC1000-MR1100B comes in a 28-SMD Module package with an exposed pad. The operating temperature range is -40°C to 85°C. This module does not include an integrated antenna.
This RF transceiver module is well-suited for embedded systems requiring wireless connectivity, such as IoT devices, smart home applications, and portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 4.2V.
The operating temperature range is -40°C to 85°C.
It supports 802.11b/g/n protocols.
The data rate is 72.2Mbps.
No, the antenna is not included.
