Mfr Part #:

ATV930D90N4

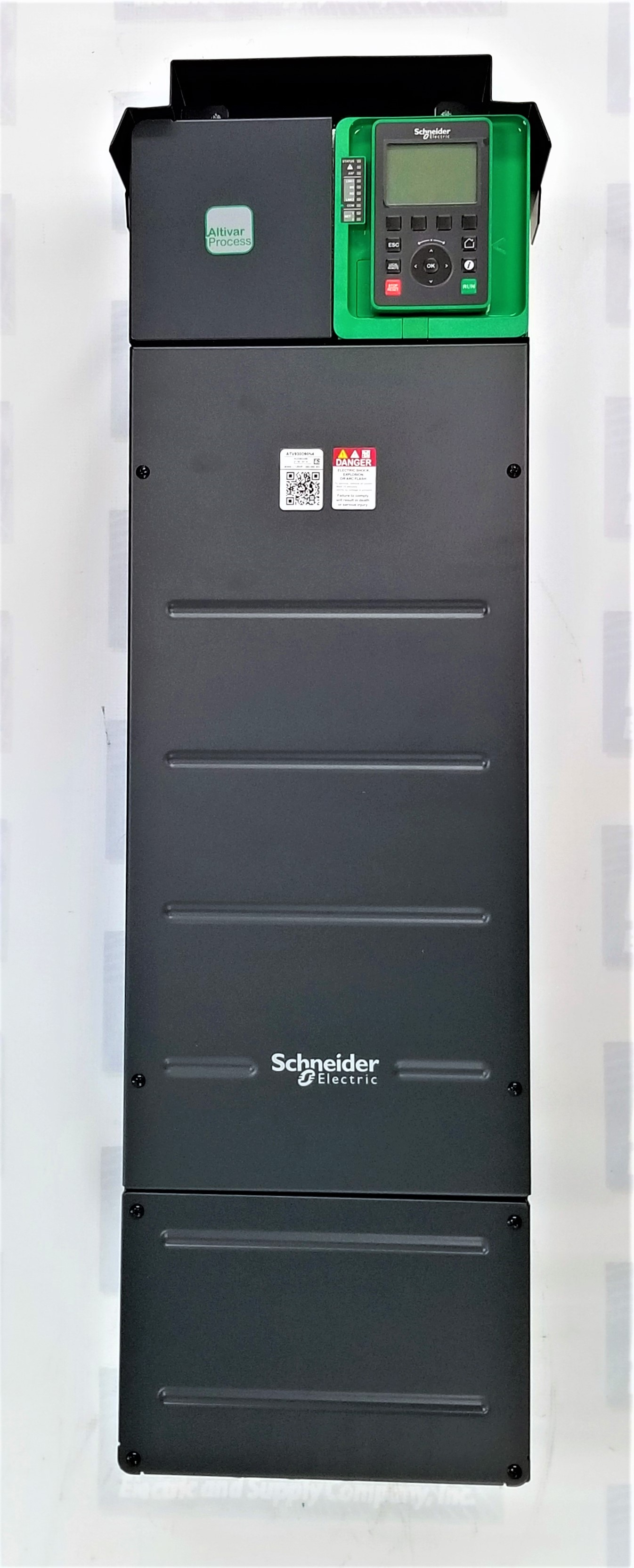

The Schneider Electric ATV930D90N4 is a 90kW variable speed drive designed for industrial applications. It supports synchronous and asynchronous motors with a 380-480V supply voltage.

✓ Total Stock: 1 pcs

$ Price Range: $9,236.00

ATV930D90N4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ATV930D90N4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Schneider Electric
Mounting Type	Wall mount

View Similar Products (0)

ATV930D90N4 Description

Short technical summary and product information.

The Schneider Electric ATV930D90N4 is a high-performance variable speed drive from the Altivar Process ATV900 series. It is designed for industrial applications, offering precise control for synchronous and asynchronous motors.

This drive operates with a rated supply voltage of 380 to 480V and provides a motor power of 90.0 kW for normal duty and 75.0 kW for heavy duty applications. It features a continuous output current of 173 A (normal duty) and 145 A (heavy duty) at 2.5 kHz. The drive includes an integrated EMC filter and offers an IP21 degree of protection, with an optional UL Type 1 rating.

Key electrical specifications include a maximum output frequency of 599 Hz and adjustable switching frequencies from 1 to 8 kHz. It supports various communication protocols such as EtherNet/IP, Modbus serial, and Modbus TCP. The ATV930D90N4 is designed for wall mounting and offers 10 discrete inputs, 2 discrete outputs, and 3 analog inputs.

Control profiles for asynchronous motors include constant torque, optimized torque, and variable torque modes. For synchronous motors, it supports permanent magnet and synchronous reluctance motor control. The drive also features 16 preset speeds for discrete input logic.

ATV930D90N4 Quick Information

Product Type: Variable Speed Drive

Series: ATV900

Canonical Name: Altivar Process ATV900 Variable Speed Drive

ATV930D90N4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ATV930D90N4 Estimated Pricing

Qty	Low	High
1+	$9,236.00	$9,236.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATV930D90N4 Features

Variable speed drive for industrial applications.
Supports synchronous and asynchronous motors.
90kW normal duty motor power rating.
380-480V supply voltage range.
IP21 protection with UL Type 1 option.

ATV930D90N4 Applications

Industrial process control.
Motor speed regulation.
Automation systems integration.
Variable torque applications.

ATV930D90N4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the rated supply voltage for the ATV930D90N4?

The rated supply voltage is 380 to 480 V.

What is the motor power for normal duty applications?

The motor power for normal duty is 90.0 kW.

What is the continuous output current for heavy duty applications?

The continuous output current for heavy duty is 145 A at 2.5 kHz.

What is the IP degree of protection for this drive?

The IP degree of protection is IP21.

What communication protocols does the ATV930D90N4 support?

It supports EtherNet/IP, Modbus serial, and Modbus TCP.

How is the ATV930D90N4 mounted?

It is designed for wall mounting.

What are the asynchronous motor control profiles available?

Available profiles include constant torque standard, optimized torque mode, and variable torque standard.
