Mfr Part #:

ATV630U30N4

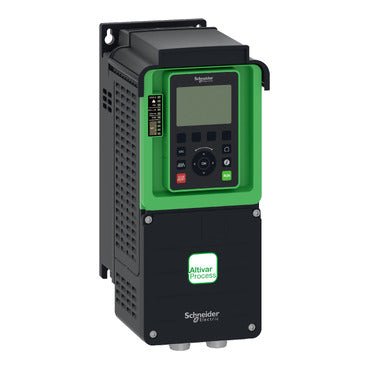

The Schneider Electric ATV630U30N4 is a 3kW variable speed drive designed for asynchronous and synchronous motors. It operates on 380-480V supplies and offers IP21 protection.

✓ Total Stock: 1 pcs

$ Price Range: $0.99

ATV630U30N4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ATV630U30N4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Schneider Electric
Dimensions	144 x 350 x 203 mm
Mounting Type	Wall mounting
Supply Voltage	380-480 V
Weight	4.6 kg

View Similar Products (0)

ATV630U30N4 Description

Short technical summary and product information.

The Schneider Electric ATV630U30N4 is a variable speed drive from the Altivar Process ATV630 series. It is rated for 3 kW motor power in normal duty applications and 2.2 kW in heavy duty, operating with three-phase 380-480V supplies at 50-60 Hz.

This drive features an IP21 protection rating and includes a Safe Torque Off (STO) safety function rated SIL 3. An integrated EMC filter is provided, supporting motor cables up to 50m for category C2 and 150m for category C3 compliance. It offers a wide output frequency range of 0.1 to 500 Hz and adjustable switching frequencies from 2 to 12 kHz.

Connectivity options include Ethernet, Modbus TCP, and Modbus serial (RS485 2-wire). The ATV630U30N4 is equipped with 8 digital inputs and 3 analog inputs. It supports various motor control profiles, including variable torque, constant torque, permanent magnet, and synchronous reluctance motors. The drive is designed for wall mounting and has dimensions of 144 x 350 x 203 mm, weighing 4.6 kg.

Applications include pump and fan speed control in water treatment, compressor and conveyor motor control in industrial processes, and HVAC systems. It complies with standards such as IEC 61800-5-1, IEC 60529, IEC 61800-3, and UL 508C.

ATV630U30N4 Quick Information

Product Type: Variable Speed Drive

Series: ATV600

Canonical Name: Schneider Electric ATV630U30N4 Variable Speed Drive

Subcategory: Controllers - Programmable (PLC, PAC)

ATV630U30N4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ATV630U30N4 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATV630U30N4 Features

Rated for 3 kW normal duty motor power.
Operates on 380-480V three-phase supply.
Features IP21 protection rating.
Includes Safe Torque Off (STO) SIL 3 function.
Integrated EMC filter for reduced noise.

ATV630U30N4 Applications

Controls pump and fan speeds.
Manages compressor and conveyor motors.
Used in HVAC ventilation systems.
Suitable for water treatment applications.
Applicable to industrial process plants.

ATV630U30N4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the motor power rating for the Schneider Electric ATV630U30N4?

The motor power rating is 3 kW for normal duty and 2.2 kW for heavy duty.

What is the supply voltage range for the ATV630U30N4?

The supply voltage range is 380 to 480 V.

What is the output frequency range of this variable speed drive?

The output frequency range is 0.1 to 500 Hz.

What is the IP protection rating of the ATV630U30N4?

The IP protection rating is IP21.

Does the ATV630U30N4 have a Safe Torque Off function?

Yes, it features a Safe Torque Off (STO) safety function rated SIL 3.

What communication protocols are supported by the ATV630U30N4?

It supports Ethernet, Modbus TCP, and Modbus serial (RS485 2-wire).

How is the ATV630U30N4 mounted?

The drive is designed for wall mounting.
