Mfr Part #:

ATV610U07N4

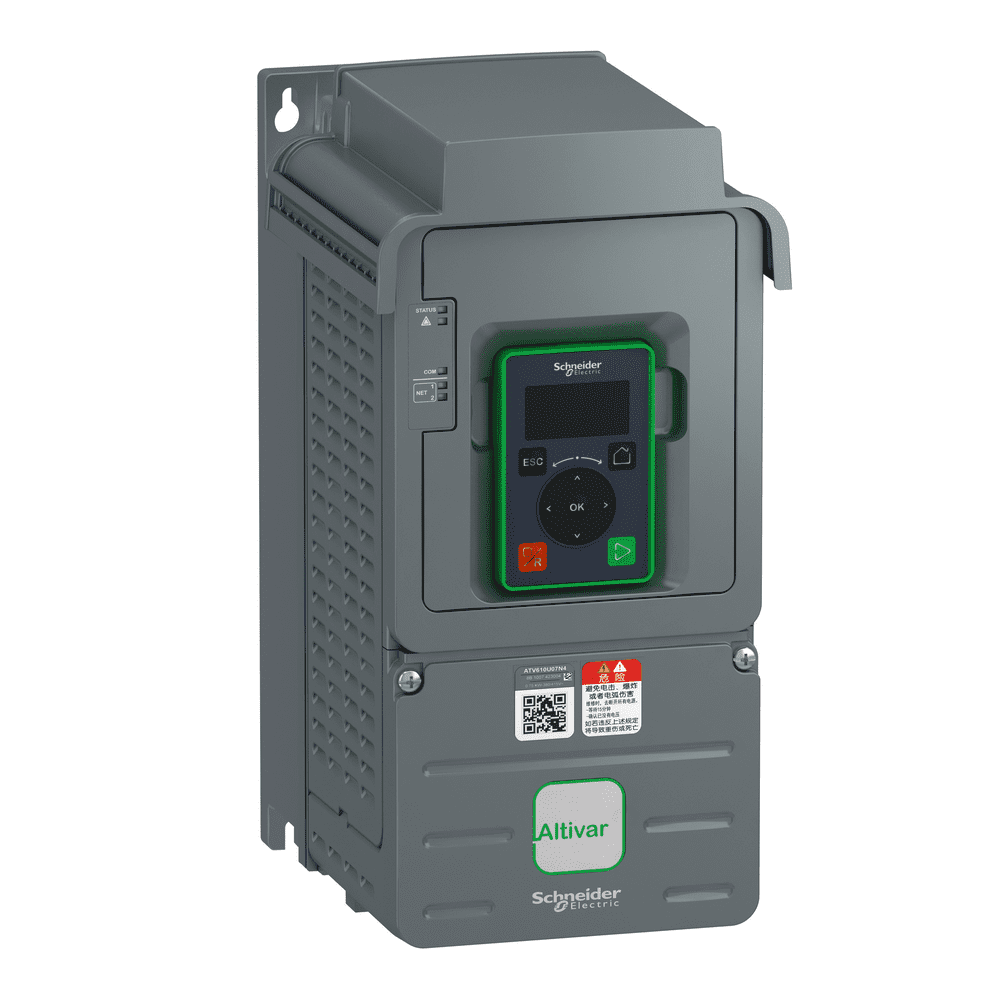

The Schneider Electric ATV610U07N4 is a variable speed drive designed for asynchronous motors. It offers 0.75 kW (1 HP) normal duty motor power and operates on a 380-460V supply with IP20 protection.

✓ Total Stock: 1 pcs

$ Price Range: $0.99

ATV610U07N4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ATV610U07N4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Schneider Electric
Mounting Type	Cabinet mount
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

ATV610U07N4 Description

Short technical summary and product information.

The Schneider Electric ATV610U07N4 is a variable speed drive from the Easy Altivar 610 range, designed for applications such as fans, pumps, compressors, and conveyors. It is suitable for asynchronous motors and features a cabinet mount design with an IP20 degree of protection.

This drive operates on a 3-phase supply frequency of 50-60 Hz with a rated supply voltage of 380-460V. It supports normal duty motor power of 0.75 kW (1 HP) and heavy duty motor power of 0.37 kW (0.5 HP). Key electrical specifications include a nominal switching frequency of 4 kHz, adjustable switching frequency from 2-12 kHz, and a continuous output current of 2.2 A at 4 kHz for normal duty.

Connectivity options include Modbus serial communication via an RJ45 connector and RS 485 physical interface. The drive offers various protection types, including thermal protection for motor and drive, overcurrent, short-circuit, and line supply protection. It also features 16 preset speeds and adjustable acceleration and deceleration ramps.

The cooling type is forced convection. The drive is integrated with an EMC filter conforming to EN/IEC 61800-3 category C3. Electrical connections for control, line side, and motor are made via screw terminals with specified wire gauges.

ATV610U07N4 Quick Information

Product Type: Variable Speed Drive

Canonical Name: Schneider Electric ATV610U07N4 Variable Speed Drive

Subcategory: Transistors - Special Purpose

ATV610U07N4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ATV610U07N4 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATV610U07N4 Features

Variable speed drive for asynchronous motors.
0.75 kW (1 HP) normal duty motor power.
380-460V supply voltage, 3-phase.
IP20 protection rating.
Modbus serial communication support.

ATV610U07N4 Applications

Ideal for fan applications.
Suitable for pump control.
Used in compressor systems.
Applicable for conveyor automation.

ATV610U07N4 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the motor power rating for normal and heavy duty?

The motor power is 0.75 kW (1 HP) for normal duty and 0.37 kW (0.5 HP) for heavy duty.

What is the supply voltage range for this drive?

The rated supply voltage is 380 to 460 V.

What is the IP degree of protection for this variable speed drive?

The IP degree of protection is IP20.

What communication protocols are supported?

The drive supports Modbus serial communication.

What are the applications for the Easy Altivar 610 drive?

This drive is specifically designed for fan, pump, compressor, and conveyor applications.
