| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Apparent Power | |
| Communication Protocol | |
| Continuous Output Current | |
| Control | |
| Current | |
| EMC Filter | |
| IP Degree of Protection | |
| Interface | |
| Isolation | |
| Line Current | |
| Maximum Horsepower Rating | |
| Maximum Transient Current | |
| Motor Power | |
| Motor Type | |
| Mounting Type | |
| Number of Motors | |
| Operating Temperature | |
| Output Voltage | |
| Rated Supply Voltage | |
| Speed Accuracy | |
| Speed Drive Output Frequency | |
| Speed Range | |
| Supply Frequency | |
| Supply Voltage Limits | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Wattage |

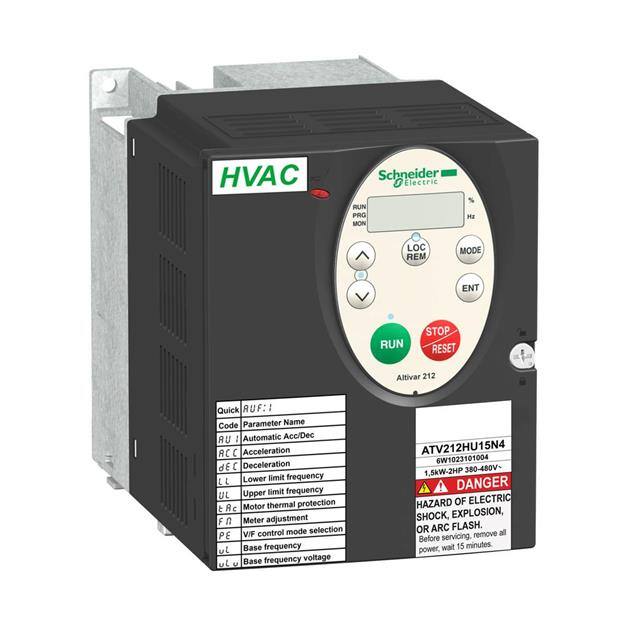

This Schneider Electric ATV212HU15N4 is a variable speed drive from the Altivar 212 range, specifically designed for pumps and fans in HVAC applications.
It supports asynchronous motors and operates on a 3-phase supply with a rated voltage of 380-480V. The drive provides a motor power of 1.5 kW (2 hp) and a continuous output current of 3.7 A. Key electrical features include a supply frequency range of 50-60 Hz, an integrated Class C2 EMC filter, and an IP21 degree of protection.
The output frequency can be adjusted from 0.5 to 200 Hz, with a speed range of 1 to 10. The drive supports multiple communication protocols including Modbus, BACnet, and LonWorks, making it suitable for integration into various control systems.
Mounted on a chassis, this module is designed for reliable operation within an ambient temperature range of -10°C to 50°C. It features electrical isolation between power and control circuits for enhanced safety.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The motor power is 1.5 kW.
The supply voltage limits are 323 to 528 V.
The continuous output current is 3.7 A.
The operating temperature range is -10°C to 50°C.
The IP degree of protection is IP21.
It supports APOGEE FLN, BACnet, Modbus, LonWorks, and METASYS N2.
