| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Analogue Input Type | |
| Analogue output type | |
| Braking Torque | |
| Communication Protocol | |
| Connector Type | |
| Continuous Output Current | |
| Control | |
| Current | |
| Discrete Input Logic | |
| Discrete Input Type | |
| EMC Filter | |
| Electrical Connection | |
| IP Degree of Protection | |
| Insulation | |
| Interface | |
| Internal Supply for Logic Inputs | |
| Internal Supply for Reference Potentiometer | |
| Line Current (Nominal @ 200 V) | |
| Line Current (Nominal @ 240 V) | |
| Linearity Error | |
| Maximum Transient Current | |
| Motor Power (Nominal @ Maximum) | |
| Motor Power (Unspecified condition) | |
| Motor Type | |
| Mounting Type | |
| Number of Addresses | |
| Number of Motors | |
| Operating Temperature | |
| Output Voltage | |
| Product Specific Application | |
| Product Type | |
| Sampling Duration (Nominal @ analogue input) | |
| Sampling Duration (Nominal @ logic input) | |
| Speed Drive Output Frequency | |
| Speed Range | |
| Supply Frequency | |
| Tape & Reel | |
| Tightening Torque | |
| Transmission Frame | |
| Transmission Rate | |
| Type | |
| Voltage | |
| Wattage |

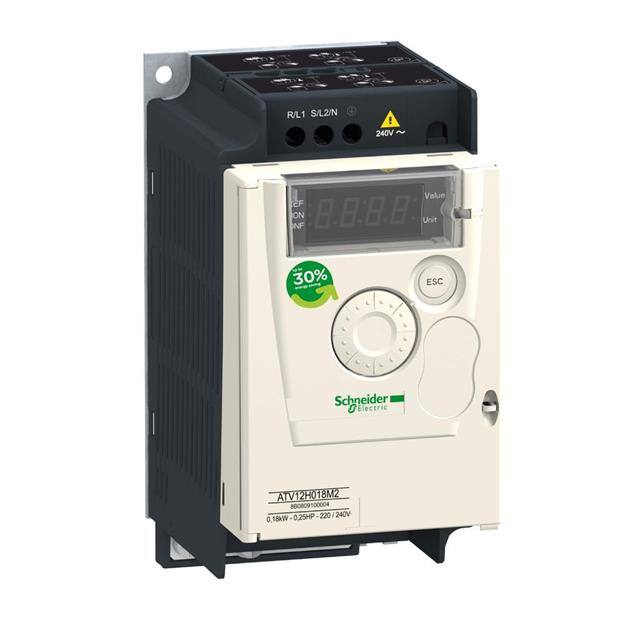

The Schneider Electric ATV12H018M2 is a variable speed drive from the Altivar 12 range, specifically designed for simple machine applications. It is suitable for asynchronous motors and provides a motor power of 0.18 kW (0.25 hp).
This drive operates with a rated supply voltage of 200-240V and a supply frequency of 50/60 Hz. It features an integrated EMC filter and supports Modbus communication via an RJ45 connector on the front face, utilizing a 2-wire RS-485 physical interface. The output frequency range is 0.5 to 400 Hz.
Key electrical specifications include a continuous output current of 1.4 A at 4 kHz and a maximum transient current of 2.1 A for 60 seconds. It offers various input and output options, including configurable analog inputs (0-20 mA, 0-10 V, 0-5 V) and outputs (0-10 V, 0-20 mA), as well as programmable discrete inputs. The drive has a chassis mount type and an IP20 degree of protection.
Environmental considerations include an operating temperature range of -10°C to 60°C. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The motor power is 0.18 kW.
The rated supply voltage is 200-240 V.
It supports Modbus communication.
The operating temperature range is -10°C to 60°C.
It is a chassis mount type.
