Mfr Part #:

ATTINY84A-MU

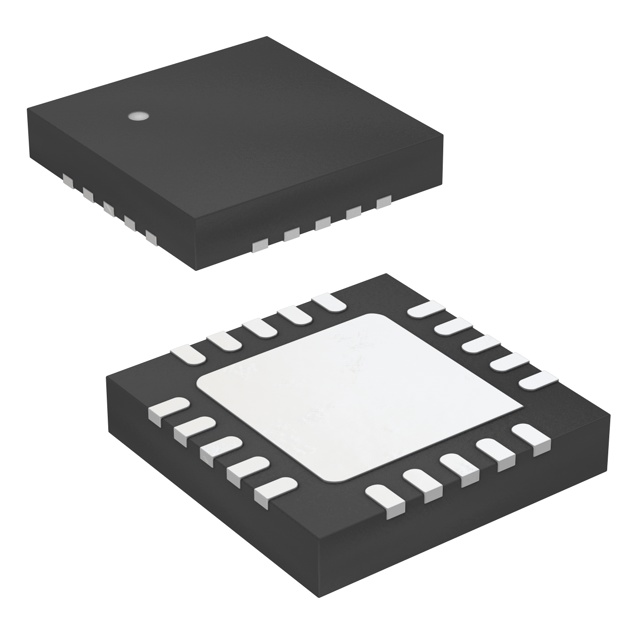

The ATTINY84A-MU is an 8-bit AVR microcontroller from Microchip Technology with 8KB Flash memory, 512B RAM, and 512B EEPROM. It operates at up to 20 MHz and comes in a 20-QFN package.

✓ Total Stock: 3,444 pcs

ATTINY84A-MU Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	3,444 pcs On Request	3444 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ATTINY84A-MU Description

Short technical summary and product information.

The ATTINY84A-MU is a high-performance, low-power 8-bit AVR microcontroller from Microchip Technology, part of the ATtiny series. It features 8KB of in-system self-programmable Flash memory, 512 bytes of SRAM, and 512 bytes of EEPROM, providing a balanced memory architecture for embedded applications.

Operating at a maximum speed of 20 MHz and with a supply voltage range of 1.8V to 5.5V, this microcontroller is designed for flexible power management. It includes 12 programmable I/O lines, an 8-channel 10-bit ADC with differential input pairs and programmable gain, and peripherals such as brown-out detection, power-on reset, PWM, a temperature sensor, and a watchdog timer.

The device is housed in a compact 20-WFQFN exposed pad package (20-QFN-EP, 4x4 mm) for surface mount assembly. It supports the Universal Serial Interface (USI) for connectivity and includes an internal oscillator. With an industrial temperature range of -40°C to +85°C, it is suitable for demanding environments.

ATTINY84A-MU Quick Information

Product Type: Microcontroller

Series: ATtiny84A

Canonical Name: Microchip Technology ATTINY84A-MU 8-bit AVR Microcontroller

Subcategory: AVR Microcontrollers

ATTINY84A-MU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ATTINY84A-MU Features

8-bit AVR core with 20 MHz max speed.
8KB Flash, 512B SRAM, 512B EEPROM memory.
12 programmable I/O lines with pin change interrupt.
10-bit ADC with 8 single-ended and 12 differential channels.
Low power consumption: 0.1 µA in power-down mode.

ATTINY84A-MU Applications

Ideal for low-power consumer electronics and remote controls.
Suitable for industrial sensor interfacing and motor control.
Used in IoT devices like environmental sensors and smart meters.
Applicable in portable medical diagnostic tools and wearables.

ATTINY84A-MU FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the ATTINY84A-MU?

The ATTINY84A-MU operates from 1.8V to 5.5V.

What is the operating temperature range of the ATTINY84A-MU?

The operating temperature range is -40°C to +85°C.

What package does the ATTINY84A-MU come in?

The ATTINY84A-MU is available in a 20-WFQFN Exposed Pad package, also known as 20-QFN-EP (4x4 mm).

Is the ATTINY84A-MU RoHS compliant?

The ATTINY84A-MU is listed as RoHS3 compliant, though this is unverified.

How much Flash memory does the ATTINY84A-MU have?

It has 8KB of Flash program memory with an endurance of 10,000 write/erase cycles.

What is the maximum clock speed of the ATTINY84A-MU?

The maximum clock speed is 20 MHz.

How many I/O pins does the ATTINY84A-MU have?

The ATTINY84A-MU has 12 programmable I/O lines.

Category	Microcontrollers
Manufacturer Name	Microchip Technology
Connectivity	USI
Core Processor	AVR
Core Size	8-Bit
Data Converters	A/D 8x10b
EEPROM Size	512 x 8
Mounting Type	Surface Mount
Number of I	12
Operating Temperature	-40°C ~ 85°C (TA)
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Size	8KB (4K x 16)
Program Memory Type	FLASH
RAM Size	512 x 8
SVHC Present	Not Present
Speed	20 MHz
Supplier Device Package	20-QFN-EP (4x4)
Voltage	1.8V ~ 5.5V
