ATTINY84-20MU
Atmel
The ATTINY84-20MU is an 8-bit AVR microcontroller from Atmel featuring 8KB Flash memory, 512B RAM, and 512B EEPROM. It operates at up to 20MHz and comes in a 20-QFN package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,873 pcs
|
32873 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The ATTINY84-20MUR is an 8-bit AVR microcontroller from Atmel with 8KB of Flash program memory, 512 bytes of SRAM, and 512 bytes of EEPROM. It operates at a maximum clock speed of 20MHz and has a wide operating voltage range of 2.7V to 5.5V.
This microcontroller features 12 general-purpose I/O lines, a Universal Serial Interface (USI), and an 8-channel 10-bit analog-to-digital converter. Peripherals include brown-out detection, power-on reset, PWM, temperature sensor, and watchdog timer.

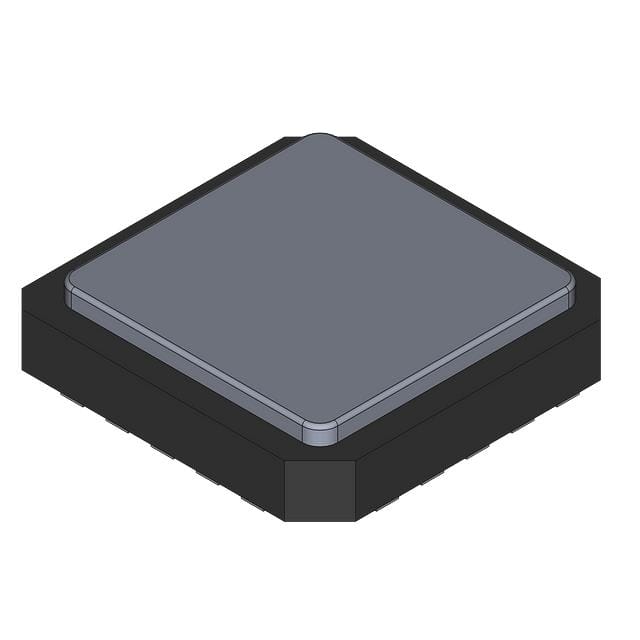

The device is housed in a 20-WFQFN exposed pad package (20-QFN-EP 4x4mm) and is designed for surface mount mounting. It operates over an industrial temperature range of -40°C to +85°C.
The internal oscillator eliminates the need for external clock components, making it suitable for space-constrained applications. The ATtiny84 series is well-suited for embedded control applications requiring low power consumption and a small footprint.
2.7V to 5.5V.
20-WFQFN Exposed Pad (20-QFN-EP 4x4mm).
-40°C to +85°C.
The part is listed as RoHS3 Compliant.
8KB Flash.
20MHz.
12 I/O pins.
