| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,267 pcs
|
60267 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,235 pcs
|
3235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The ATTINY24-15SSZ is an 8-bit AVR microcontroller from Microchip Technology (formerly Atmel) based on the enhanced RISC architecture. It features 2KB of in-system programmable Flash memory, 128B SRAM, and 128B EEPROM, providing ample storage for small embedded applications.
The device operates at a maximum clock speed of 16 MHz at 4.5V-5.5V and 8 MHz at 2.7V-5.5V. It includes a rich set of peripherals: a 10-bit ADC with 8 single-ended and 12 differential channels, two timer/counters with PWM outputs, a Universal Serial Interface (USI), an analog comparator, brown-out detection, and a watchdog timer. The microcontroller supports debugWIRE for on-chip debugging and is programmable via SPI.

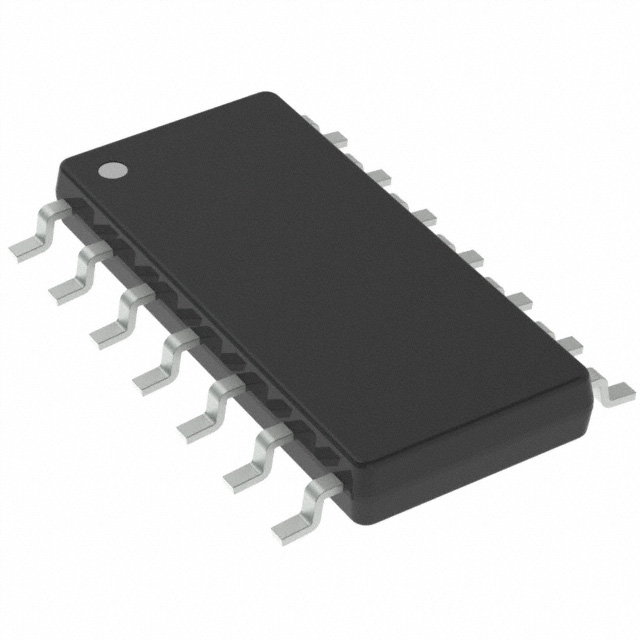

Packaged in a 14-SOIC surface mount package (0.154" width, 3.90mm), the ATTINY24-15SSZ is rated for automotive temperature range (-40°C to +125°C) and operates from 2.7V to 5.5V. Typical power consumption is 800 µA in active mode at 1MHz/2.7V and 2.0 µA in power-down mode, making it suitable for low-power and automotive applications.
2.7V to 5.5V.
14-SOIC (0.154", 3.90mm Width) surface mount package.
-40°C to 125°C (automotive grade).
RoHS3 Compliant (unverified).
16 MHz at 4.5V-5.5V, 8 MHz at 2.7V-5.5V.
2KB Flash, 128B SRAM, 128B EEPROM.
10-bit ADC, two timers with PWM, USI, analog comparator, brown-out detection, watchdog timer.
