| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,640 pcs
|
3640 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request | |
|
318 pcs
|
318 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Watchdog Timer |

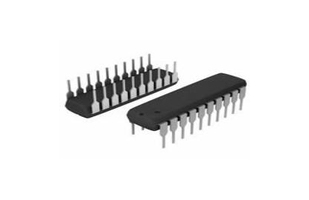

The ATTINY2313-20PU is an 8-bit AVR microcontroller from Atmel, designed for embedded applications. It offers 2KB of In-System Programmable Flash memory and 128 Bytes of SRAM, along with 128 Bytes of EEPROM.
This microcontroller operates at a maximum clock speed of 20MHz, providing up to 20 MIPS throughput. It features 18 general-purpose I/O lines, two flexible Timer/Counters with compare modes, and a full-duplex USART. The AVR RISC architecture includes 120 powerful instructions, most executing in a single clock cycle.
The ATTINY2313-20PU is housed in a 20-pin Dual In-line Package (DIP) suitable for through-hole mounting. It supports various power-saving modes, including Idle, Power-down, and Standby, to optimize energy consumption in different operational states.
Key features include a programmable watchdog timer, an on-chip analog comparator, and DebugWire on-chip debugging support. The flash memory has an endurance of 10,000 Write/Erase cycles, while the EEPROM offers 100,000 write/erase cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.63 | $6.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ATTINY2313-20PU is available in a DIP-20 through-hole package.
The flash memory size is 2KB.
The maximum clock speed is 20 MHz.
It has 18 general-purpose I/O lines.
It includes a USART interface.
The EEPROM has 100,000 write/erase cycles.
DebugWire on-chip debugging is supported.
