ATTINY2313 The ATTINY2313-20MUR is an 8-bit AVR microcontroller from Microchip. It features 2KB of Flash memory and operates at speeds up to 20MHz.
Mfr Part #:

ATTINY2313

Available from 1 distributors
Mfr Name: Atmel
Atmel
The ATTINY2313-20MUR is an 8-bit AVR microcontroller from Microchip. It features 2KB of Flash memory and operates at speeds up to 20MHz.
✓ Total Stock: 51,657 pcs
$ Price Range: $2.50

ATTINY2313 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
51,657 pcs
On Request
51657 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATTINY2313 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
EEPROM Size
Mounting Type
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
SVHC Present
Speed
Supplier Device Package
Voltage Supply
View Similar Products (0)

ATTINY2313 Description

Short technical summary and product information.

The ATTINY2313-20MUR is an 8-bit microcontroller based on the AVR architecture, manufactured by Microchip. It offers 2KB of Flash program memory and 128 bytes of SRAM, making it suitable for various embedded control applications.



This microcontroller operates at clock speeds up to 20MHz and supports a supply voltage range of 2.7V to 5.5V. Key peripherals include SPI and UART/USART for communication, along with Brown-out Detect/Reset, POR, PWM, and WDT.

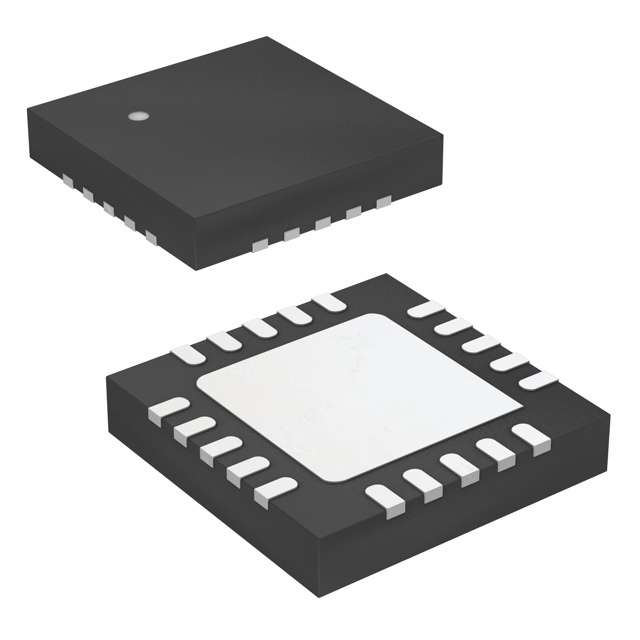

The ATTINY2313-20MUR is available in a 20-WFQFN Exposed Pad package and is designed for surface mounting. Its internal oscillator simplifies design, and it provides 18 I/O pins for interfacing with external components.



This part is commonly used in embedded systems requiring a compact form factor and efficient processing. Its features make it suitable for applications such as simple robotics, sensor interfaces, and basic control functions in consumer electronics.

ATTINY2313 Quick Information

Product Type: Microcontroller
Series: ATtiny
Canonical Name: ATTINY2313-20MUR Microcontroller
Subcategory: 8-Bit Microcontroller

ATTINY2313 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

ATTINY2313 Estimated Pricing

Qty Low High
1+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATTINY2313 Features

  • 8-bit AVR microcontroller by Microchip.
  • 2KB Flash program memory.
  • 128 bytes SRAM and 128 bytes EEPROM.
  • Operates up to 20MHz clock speed.
  • 2.7V to 5.5V supply voltage range.

ATTINY2313 Applications

  • Suitable for embedded systems.
  • Ideal for sensor interfaces.
  • Used in simple robotics.
  • Applicable in consumer electronics.
  • Supports basic control functions.

ATTINY2313 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the ATTINY2313?

2.7V to 5.5V.

What is the operating temperature range of the ATTINY2313?

-40°C to 85°C.

What package does the ATTINY2313 come in?

20-WFQFN Exposed Pad (20-QFN-EP 4x4).

What is the maximum clock speed of the ATTINY2313?

20MHz.

How much Flash and RAM does the ATTINY2313 have?

2KB Flash, 128B RAM, and 128B EEPROM.

How many I/O pins does the ATTINY2313 have?

18 I/O pins.

What communication interfaces does the ATTINY2313 support?

SPI and UART/USART.
