ATTINY13A-SSU

The ATTINY13A is a low-power, high-performance 8-bit AVR microcontroller from Microchip Technology. It features 1KB of in-system self-programmable Flash memory, 64 bytes of SRAM, and 64 bytes of EEPROM, providing ample storage for small embedded applications. The device operates at speeds up to 20 MHz, delivering up to 20 MIPS throughput.

Key peripherals include a 4-channel 10-bit ADC, one 8-bit timer/counter with PWM, a watchdog timer, and an on-chip analog comparator. The microcontroller supports a wide operating voltage range of 1.8V to 5.5V and is rated for industrial temperature ranges from -40°C to 85°C. It also features brown-out detection, power-on reset, and multiple low-power modes including idle and power-down.

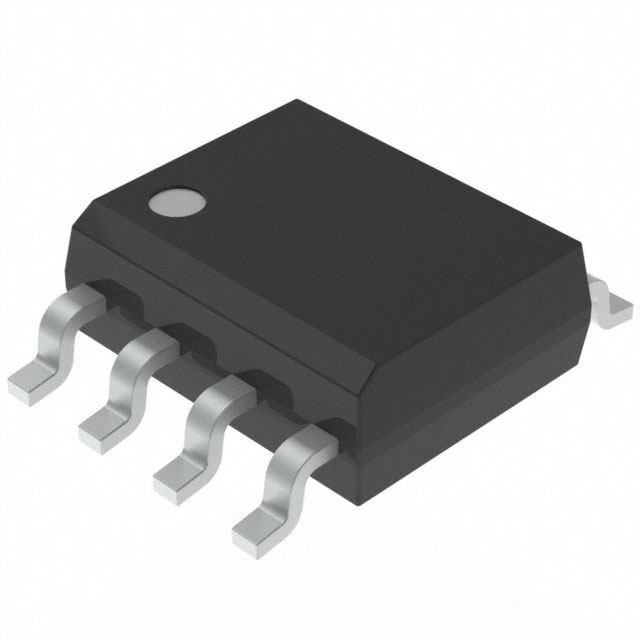

The ATTINY13A is available in an 8-pin SOIC package (8-SOIC) with a 0.154-inch body width, suitable for surface mount assembly. It provides six programmable I/O lines and supports in-system programming via SPI. This microcontroller is ideal for cost-sensitive, space-constrained applications requiring basic control and analog sensing.
