| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,657 pcs
|
51657 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The ATTINY13-20SI is an 8-bit AVR microcontroller from Microchip Technology, part of the ATtiny family. It features a high-performance AVR RISC core running at up to 20 MHz, delivering up to 20 MIPS throughput. The device includes 1 KB of in-system self-programmable Flash memory, 64 bytes of SRAM, and 64 bytes of EEPROM with high endurance (10,000 write/erase cycles for Flash, 100,000 for EEPROM).
Operating from 2.7V to 5.5V, the microcontroller is designed for industrial temperature ranges (-40°C to 85°C). It provides six programmable I/O lines, a 4-channel 10-bit ADC with internal voltage reference, one 8-bit timer/counter with PWM, a watchdog timer with separate oscillator, brown-out detection, and an on-chip analog comparator. Additional features include debugWIRE on-chip debugging, SPI programming, and multiple low-power modes (Idle, ADC Noise Reduction, Power-down).

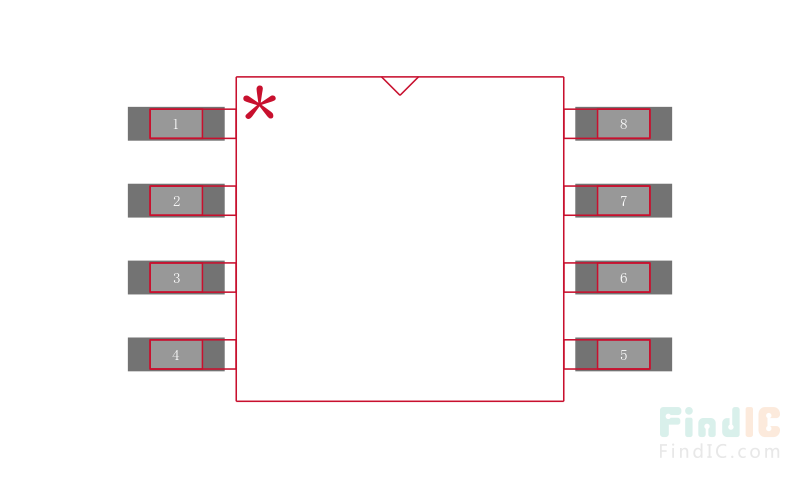

The ATTINY13-20SI is housed in an 8-pin SOIC package (0.209" width, 5.30mm) with surface mount mounting. Note: This part is listed as obsolete by the manufacturer; consider alternatives such as the ATTINY13-20SU for new designs.
2.7V to 5.5V.
-40°C to 85°C.
8-SOIC (0.209", 5.30mm Width) surface mount.
RoHS3 Compliant (unverified).
AVR 8-bit.
20 MHz.
1 KB (512 x 16).
