| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
325 pcs
|
325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Contents | |
| Core Processor | |
| Interface | |
| Mounting Type | |
| Programming Interface | |
| Type | |
| Utilized IC |

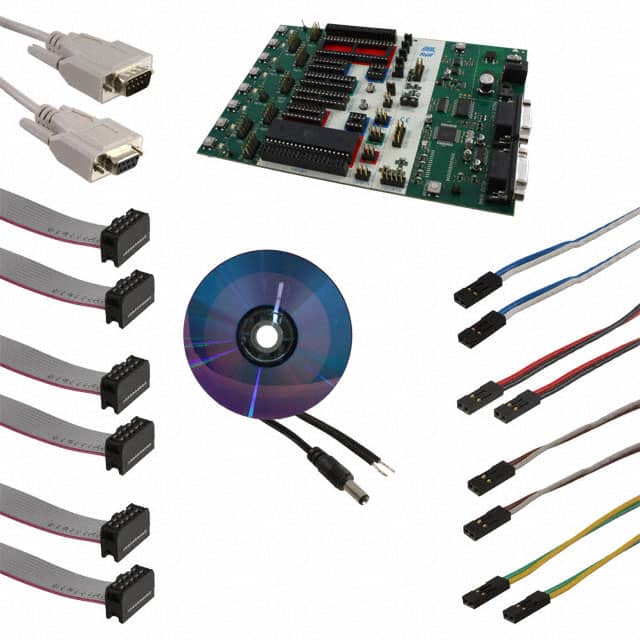

The Microchip Technology ATSTK500 is an evaluation platform designed for AVR 8-bit MCU development. The board is built around the AT90S8515 microcontroller, providing a complete environment for prototyping and testing AVR-based designs.
Key specifications include an AVR core processor, ISP and high-voltage programming interfaces, and an RS-232 serial interface for communication. The board uses socket mounting for the target MCU, allowing easy device swapping. Contents include the evaluation board and necessary cables.
This evaluation platform is suited for engineers evaluating the AT90S8515 and other AVR devices supported by the STK500. The included user LEDs and switches (described in the datasheet) enable interactive testing, while the RS-232 interface facilitates host communication during development.
| Qty | Low | High |
|---|---|---|
| 1+ | $166.43 | $166.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ATSTK500 uses an AVR core processor.
The board utilizes the AT90S8515 MCU.
It supports ISP and high-voltage programming.
The board includes an RS-232 interface.
The target MCU uses socket mounting.
The board comes with board(s) and cable(s).
