| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,702 pcs
|
22702 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

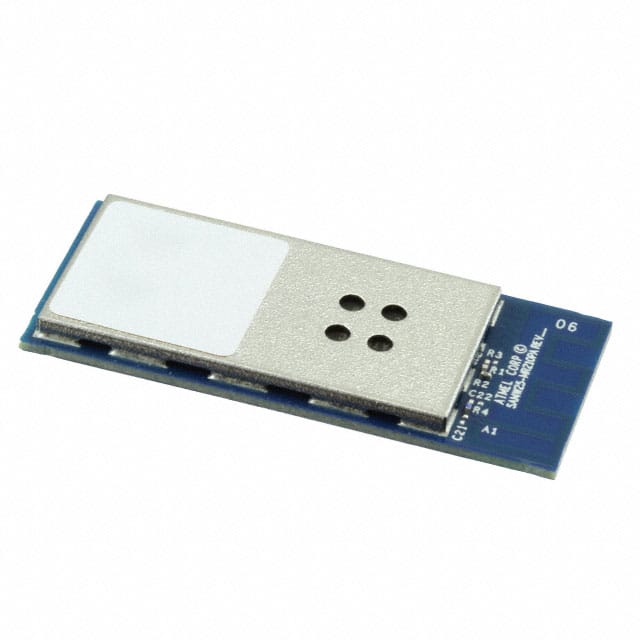

The Microchip Technology ATSAMW25H18-MR510PB is an RF transceiver module designed for wireless communication applications. It operates in the 2.4GHz frequency band and supports WiFi 802.11b/g/n protocols, offering a data rate of up to 65Mbps.
This module features an integrated trace antenna and a surface mount package, making it suitable for compact designs. It requires an operating voltage between 2.7V and 4.2V and has a power output of 17dBm. The module includes 256kB Flash and 32kB SRAM memory, with serial interfaces for SPI and UART communication.
With an operating temperature range of -40°C to 85°C, the ATSAMW25H18-MR510PB is built for various environmental conditions. Its sensitivity is rated at -95.5dBm. The utilized IC is the ATWINC1500, a key component enabling its wireless capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 4.2V.
The operating temperature range is -40°C to 85°C.
It supports 802.11b/g/n protocols.
The data rate is 65Mbps.
Yes, it has an integrated trace antenna.
