| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
690 pcs
|
690 pcs | On Request | 1 | On Request | On Request | 1746+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Application Processor | |
| Data Rate | |
| Frequency | |
| Maximum Output Power | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Output Power (Typical @ 802.11 b /11 Mbps) | |
| Output Power (Typical @ 802.11 g /54 Mbps) | |
| Output Power (Typical @ 802.11 n /72 Mbps) | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supply Current (Typical @ Receiving) | |
| Supply Current (Typical @ Transmitting) | |
| Supply Voltage (Minimum/Typical/Maximum) | |
| Tape & Reel | |
| Voltage | |
| sensitivity (@ 1 Mbps) | |
| sensitivity (@ 54 Mbps) |

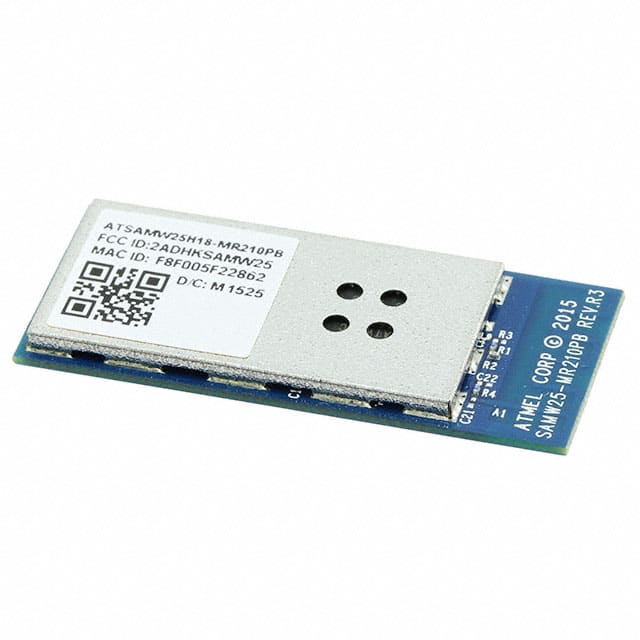

The Microchip Technology ATSAMW25H18-MR210PB is an RF transceiver module designed for Wi-Fi connectivity. It operates on the IEEE 802.11 b/g/n standard within the 2.4GHz ISM band, providing a maximum data rate of 72.2Mbps.
This module integrates an ARM Cortex-M0+ based microcontroller and offers 256KB of Flash memory and 32KB of SRAM. Key electrical specifications include an output power of up to 19.5dBm and a sensitivity of -98dBm. It supports SPI and UART serial interfaces for communication.
The ATSAMW25H18-MR210PB is designed for surface mount applications and operates within a temperature range of -40°C to 85°C. Its compact footprint makes it suitable for various IoT and consumer electronics applications requiring wireless connectivity.
This module is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed to provide reliable Wi-Fi connectivity with low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7V to 3.6V.
The ATSAMW25H18-MR210PB is supplied in a Module package.
The operating temperature range is -40°C to 85°C.
Yes, the RoHS status is RoHS3 Compliant.
The maximum data rate is 72.2Mbps.
It supports the IEEE 802.11 b/g/n protocol.
The available serial interfaces are SPI and UART.
