| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,300 pcs
|
11300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

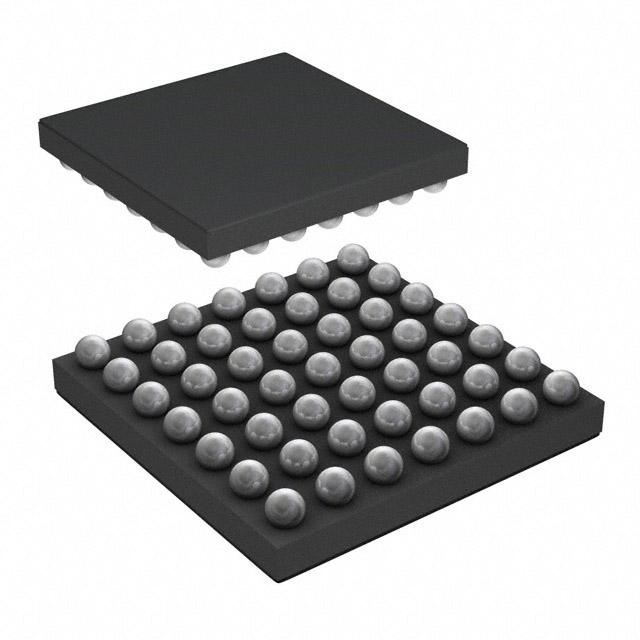

The Microchip Technology ATSAMG55G19A-UUT is a 32-bit single-core microcontroller built around the ARM Cortex-M4 processor, operating at a maximum speed of 120MHz. It features 512KB of Flash program memory and 176K x 8 of RAM, providing ample resources for embedded control applications.
This device includes a range of integrated peripherals such as DMA, I2S, POR, PWM, and WDT, along with connectivity options including I2C, SPI, UART/USART, and USB. It also features an 8-channel 12-bit A/D converter for analog signal acquisition. The microcontroller operates from a supply voltage of 1.62V to 3.6V and is rated for an industrial temperature range of -40°C to +85°C.
The ATSAMG55G19A-UUT is offered in a 49-pin UFBGA/WLCSP package with a surface mount mounting type, specifically the 49-WLCSP (2.84x2.84) supplier device package. It has 38 general-purpose I/O lines and uses an internal oscillator.
The core processor is an ARM Cortex-M4, 32-bit single-core.
The maximum speed is 120MHz.
It has 512KB of Flash program memory.
The operating temperature range is -40°C to +85°C.
The supply voltage range is 1.62V to 3.6V.
It comes in a 49-UFBGA, WLCSP package, specifically the 49-WLCSP (2.84x2.84).
Connectivity includes I2C, SPI, UART/USART, and USB.
