ATSAMD20J18A-CUT ARM Cortex-M0+ based 32-bit microcontroller from Microchip with 256KB Flash and 32KB SRAM, operating at 48MHz.
Mfr Part #:

ATSAMD20J18A-CUT

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
ARM Cortex-M0+ based 32-bit microcontroller from Microchip with 256KB Flash and 32KB SRAM, operating at 48MHz.
✓ Total Stock: 26,231 pcs

ATSAMD20J18A-CUT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
25,829 pcs
On Request
25829 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
402 pcs
On Request
402 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATSAMD20J18A-CUT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

ATSAMD20J18A-CUT Description

Short technical summary and product information.

The Microchip Technology ATSAMD20J18A-CUT is a 32-bit ARM Cortex-M0+ based microcontroller from the SAM D20 series. It features 256KB of in-system self-programmable Flash memory and 32KB of SRAM, operating at a maximum CPU speed of 48MHz with a single-cycle hardware multiplier.



The device includes a rich set of connectivity options: I2C, SPI, and UART/USART interfaces, along with 52 general-purpose I/O pins. It integrates peripherals such as brown-out detect/reset, power-on reset, and watchdog timer, as well as data converters: a 20-channel 12-bit A/D converter and a 1-channel 10-bit D/A converter. The microcontroller operates over a supply voltage range of 1.62V to 3.6V and a temperature range of -40°C to +85°C.

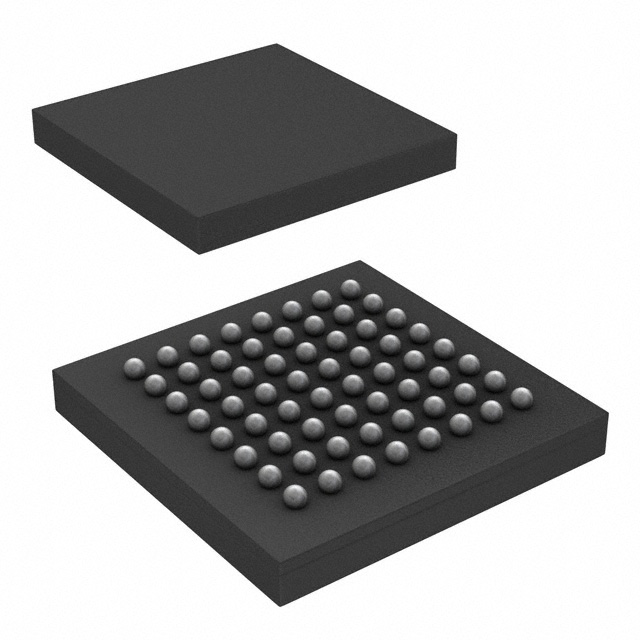

The part is housed in a 64-UFBGA surface-mount package (5x5mm body) making it suitable for space-constrained embedded designs. It is designed for home automation, consumer electronics, metering, and industrial control applications. On-chip oscillators, both internal and external, support flexible clock generation.

ATSAMD20J18A-CUT Quick Information

Product Type: Microcontroller
Series: ATSAMD20J
Canonical Name: Microchip Technology ATSAMD20J18A-CUT ARM Cortex-M0+ 32-Bit MCU
Subcategory: 32-bit Microcontroller

ATSAMD20J18A-CUT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ATSAMD20J18A-CUT Features

  • ARM Cortex-M0+ CPU at 48MHz.
  • 256KB Flash and 32KB SRAM memory.
  • 52 I/O pins with multiple serial interfaces.
  • 20-channel 12-bit ADC and 10-bit DAC.
  • Wide supply voltage 1.62V to 3.6V.

ATSAMD20J18A-CUT Applications

  • Home automation and consumer electronics.
  • Industrial metering and control systems.
  • Capacitive touch button and slider interfaces.
  • Low-power sensor and data logging.

ATSAMD20J18A-CUT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to +85°C

What is the supply voltage range?

1.62V to 3.6V

How much Flash memory does this MCU have?

256KB

How much RAM is on-chip?

32KB

What package does the ATSAMD20J18A-CUT come in?

64-UFBGA (5x5mm)

What is the maximum CPU speed?

48MHz

How many I/O pins are available?

52
