| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Mode Current | |
| Board Type | |
| Contents | |
| Core Processor | |
| Flash Memory Size | |
| Maximum Clock Frequency | |
| Mounting Type | |
| SRAM Size | |
| Type | |
| Utilized IC |

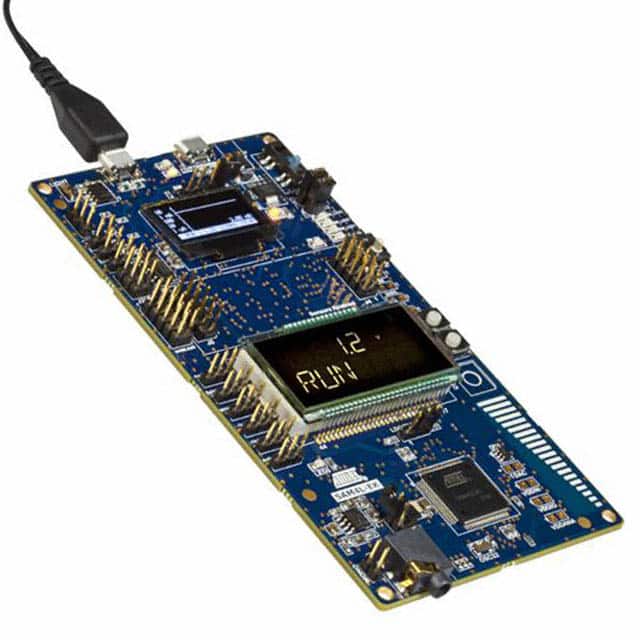

The ATSAM4L-EK is an evaluation platform from Microchip Technology designed for the ATSAM4LC4C microcontroller based on the ARM Cortex-M4 processor. The board operates at a maximum clock frequency of 48 MHz and features picoPower technology for ultra-low power consumption, achieving active mode current as low as 90 µA/MHz. It includes 128 to 512 Kbytes of flash memory and 64 Kbytes of SRAM.
The kit contents include the evaluation board, cables, an LCD display, and a J-Link programmer, providing a complete out-of-box experience for developers. The board uses a fixed mounting type and is intended for evaluation and prototyping of 32-bit MCU applications.
This evaluation board is suitable for embedded development requiring low power and high performance, leveraging the SAM4L series' SleepWalking and peripheral event system for intelligent power management.
| Qty | Low | High |
|---|---|---|
| 1+ | $254.18 | $254.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
ARM Cortex-M4
48 MHz
90 µA/MHz typical
128 to 512 Kbytes
64 Kbytes
Board(s), Cable(s), LCD, J-Link Programmer
