| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The ATSAM3N1AB-AU is a 32-bit single-core microcontroller based on the ARM Cortex-M3 processor, running at 48MHz. It includes 64KB of flash program memory, 8KB of SRAM, 34 digital I/O pins, and an 8-channel 10-bit ADC. The device operates from a 1.62V to 3.6V supply and is specified for -40°C to 85°C ambient temperature.
The MCU provides peripherals such as brown-out detect/reset, DMA, POR, PWM, and watchdog timer. Connectivity options include I²C, IrDA, SPI, and UART/USART, making it suitable for embedded control and communication applications. An internal oscillator reduces the need for external clock components.

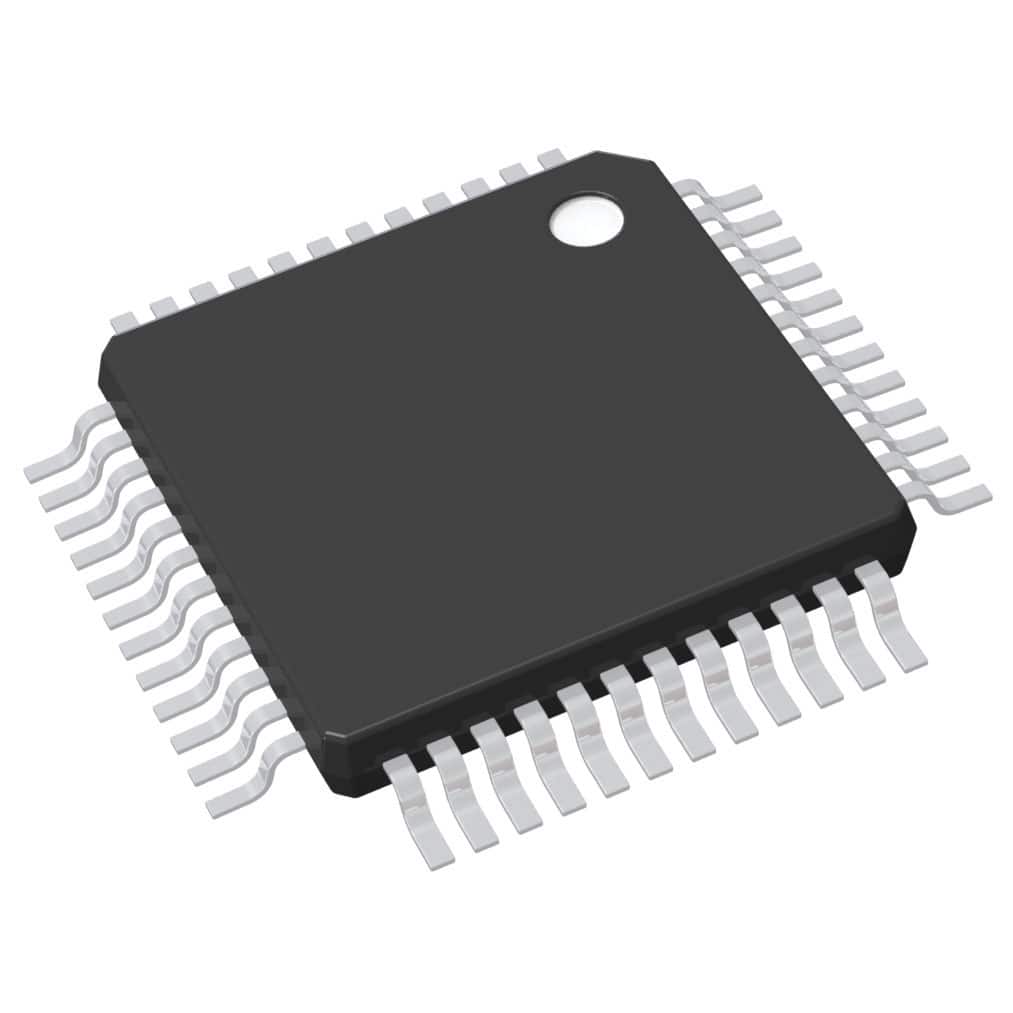

The ATSAM3N1AB-AU is supplied in a 48-LQFP (7x7mm) surface-mount package, enabling compact PCB layouts and automated assembly.
The supply voltage range is 1.62V to 3.6V.
It is available in a 48-LQFP (7x7) surface-mount package.
It operates from -40°C to 85°C ambient temperature.
The part is reported as RoHS3 compliant, but this status has not been independently verified.
It uses an ARM Cortex-M3 32-bit single-core processor.
It has 64KB flash memory and 8KB SRAM.
It supports I²C, IrDA, SPI, and UART/USART.
