ATS675LSETN-LT-T The Allegro MicroSystems ATS675LSETN-LT-T is a Hall Effect Sensor IC designed for automotive camshaft sensing. It operates from 3.3V to 24V and features a wide temperature range.
Mfr Part #:

ATS675LSETN-LT-T

Available from 2 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro MicroSystems ATS675LSETN-LT-T is a Hall Effect Sensor IC designed for automotive camshaft sensing. It operates from 3.3V to 24V and features a wide temperature range.
✓ Total Stock: 9,649 pcs
$ Price Range: $1.50

ATS675LSETN-LT-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,399 pcs
On Request
7399 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,250 pcs
On Request
2250 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATS675LSETN-LT-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Mounting Type
Operating Temperature
Output Type
Storage Temperature
Supplier Device Package
Supplier Package
Supply Voltage
Tape & Reel
Technology
Voltage
View Similar Products (0)

ATS675LSETN-LT-T Description

Short technical summary and product information.

The Allegro MicroSystems ATS675LSETN-LT-T is a Hall Effect Sensor IC optimized for automotive camshaft sensing applications. This device offers true power-on state (TPOS) recognition and operates at zero target speed, providing consistent switch points regardless of air gap variations due to its Automatic Gain Control (AGC) feature.



Key electrical specifications include a supply voltage range of 3.3V to 24V and an output type of Open Drain. It operates within an ambient temperature range of -40°C to 150°C. The sensor utilizes Hall Effect technology and is designed for through-hole mounting.

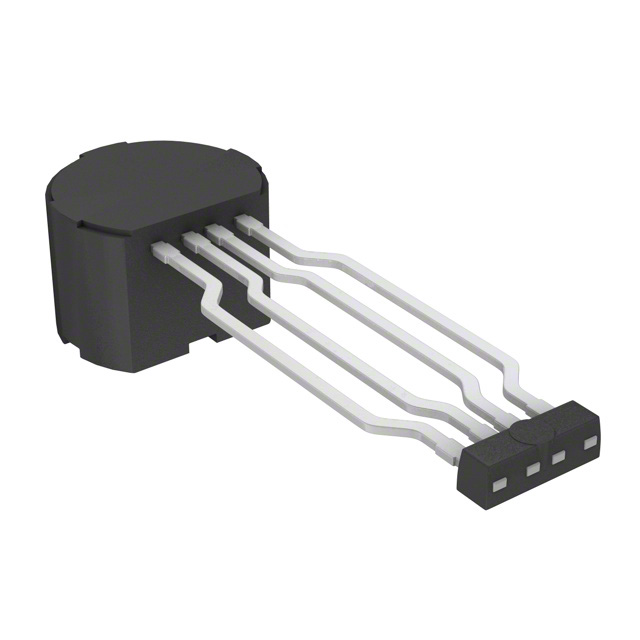

The IC incorporates a sophisticated digital circuit to eliminate offset effects and includes a filter for enhanced noise immunity. It also features an undervoltage lockout (UVLO) and a digital output polarity option for customization. The device is provided in a 4-pin SIP package with formed leads.

ATS675LSETN-LT-T Quick Information

Product Type: Hall Effect Sensor IC
Canonical Name: ATS675 Hall Effect Speed Sensor IC
Subcategory: Speed Sensor IC

ATS675LSETN-LT-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead (Pb) free with 100% matte tin leadframe plating

ATS675LSETN-LT-T Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATS675LSETN-LT-T Features

  • True power-on state recognition.
  • Operates at zero target speed.
  • Optimized for automotive camshaft sensing.
  • Wide 3.3V to 24V supply voltage.
  • Through hole mounting in 4-SIP package.

ATS675LSETN-LT-T Applications

  • Automotive camshaft position sensing.
  • Engine speed and position monitoring.
  • Zero-speed detection applications.
  • Target profile sensing.

ATS675LSETN-LT-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the ATS675LSETN-LT-T?

The operating temperature range is -40°C to 150°C (TA).

What type of output does the ATS675LSETN-LT-T provide?

The ATS675LSETN-LT-T provides an Open Drain output.

What is the supply voltage range for this Hall Effect Sensor IC?

The supply voltage range is 3.3V to 24V.

How is the ATS675LSETN-LT-T mounted?

The ATS675LSETN-LT-T is mounted using the Through Hole method.

What is the package type for the ATS675LSETN-LT-T?

The device is provided in a 4-pin SIP package.

Does the ATS675LSETN-LT-T support true power-on state recognition?

Yes, the ATS675LSETN-LT-T is a True Power-On State (TPOS) sensor IC.

Is this sensor optimized for automotive applications?

Yes, the ATS675LSETN-LT-T is optimized for automotive camshaft sensing.
