| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
880 pcs
|
880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Polarization | |
| Sensing Range | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Test Condition | |
| Voltage |

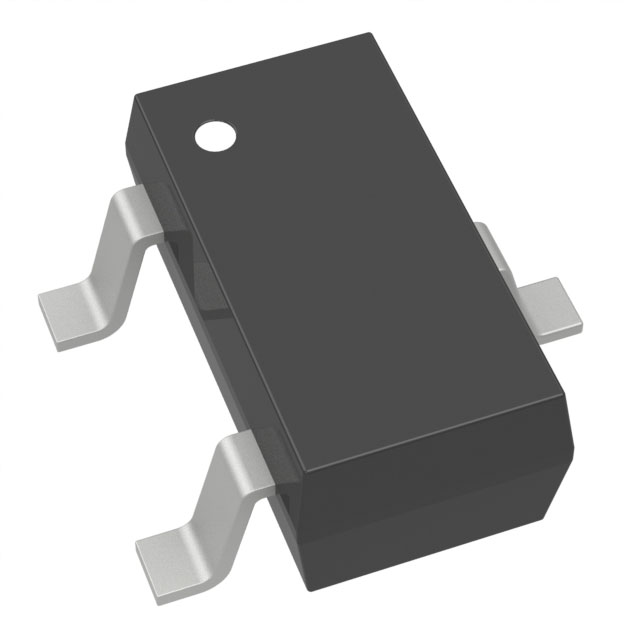

The ATS137-WG-7 from Diodes Incorporated is a unipolar Hall effect magnetic switch designed for various sensing applications. This component operates within a wide supply voltage range of 3.5V to 20V, offering flexibility in system design. It features temperature compensation for stable performance across its operating temperature range of -20°C to 85°C.
The switch has an output current capability of up to 25mA and a supply current of 10mA. Its sensing range is specified as 10mT for trip and 1mT for release, with a typical hysteresis of 80 Gs. The device is housed in a compact SC-59-3 package, suitable for surface mount applications.
Key specifications include an open collector output type and a polarization sensitivity to the South Pole. The ATS137-WG-7 is designed for reliable operation and is suitable for integration into a variety of electronic circuits requiring magnetic field detection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ATS137-WG-7 operates with a supply voltage range of 3.5V to 20V.
The maximum output current for the ATS137-WG-7 is 25mA.
The ATS137-WG-7 can operate in temperatures ranging from -20°C to 85°C.
The ATS137-WG-7 is supplied in a TO-236-3, SC-59, SOT-23-3 package.
The ATS137-WG-7 is RoHS3 Compliant.
