| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Weight |

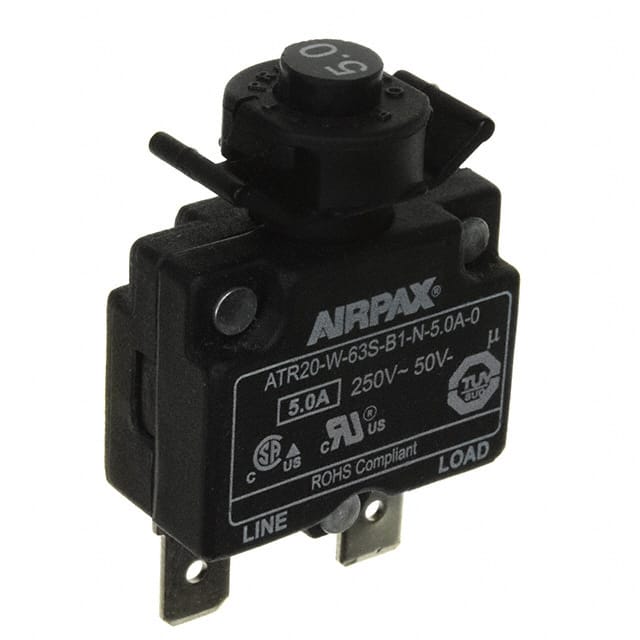

The Sensata ATR20 product family, including the ATR20-W-63S-B1-N-5.0A-0, offers single-pole, thermally operated overload protection. This circuit breaker is designed for reliable, trip-free operation on current overloads, making it suitable for general industrial applications.
Key electrical specifications include a nominal current rating of 5 Amps, with standard current ratings available from 2.5 to 20 Amps. It is rated for 125/250 VAC and 50 VDC. The maximum breaking capacity is 8x In for currents less than 6A and 60A maximum for currents greater than 6A. The device operates with a thermal tripping mechanism and features a push-to-reset actuator.
Designed for ease of integration, this model offers panel mounting. It has an operational life of 1000 cycles at 2x In and a maximum operating temperature of 60°C ambient. The ATR20 series is RoHS compliant and meets applicable approvals including UL 1077, CSA 22.2 No. 235-04, and TÜV EN 60934.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard current rating for this circuit breaker is 5 Amps.
This circuit breaker is rated for 250 VAC and 50 VDC.
The actuator type is a push button for reset.
The maximum operating ambient temperature is 60°C.
Yes, this product is RoHS3 Compliant.
