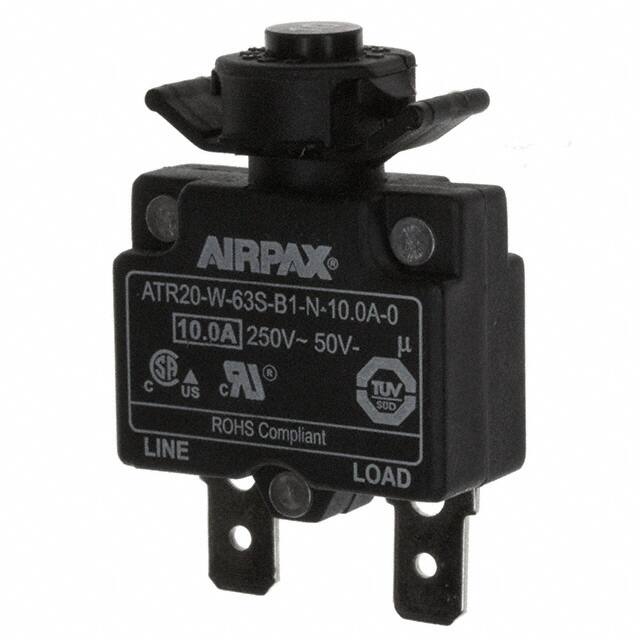

The Sensata ATR20 product family, including the ATR20-W-63S-B1-N-10.0A-0, offers reliable thermal overload protection for equipment. This single-pole circuit breaker utilizes a snap-acting, trip-free mechanism for dependable operation during current overloads.
Key electrical specifications include a 10A current rating, 250VAC voltage rating, and 50VDC voltage rating. It offers a maximum breaking capacity of 60A and a conditional short circuit capacity of 1000A at 125/250VAC. The tripping current code is TC2, and it has an insulation resistance of at least 100 MΩ at 500VDC.
Designed for general industrial applications, this thermal circuit protector features a push-to-reset actuator and a panel mount configuration. It operates within a maximum ambient temperature of 60°C and has an operational life of 1000 cycles at 2x In. The device is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The AC voltage rating is 250 VAC.
The DC voltage rating is 50 VDC.
It uses a push-to-reset button.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 Compliant.
