| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

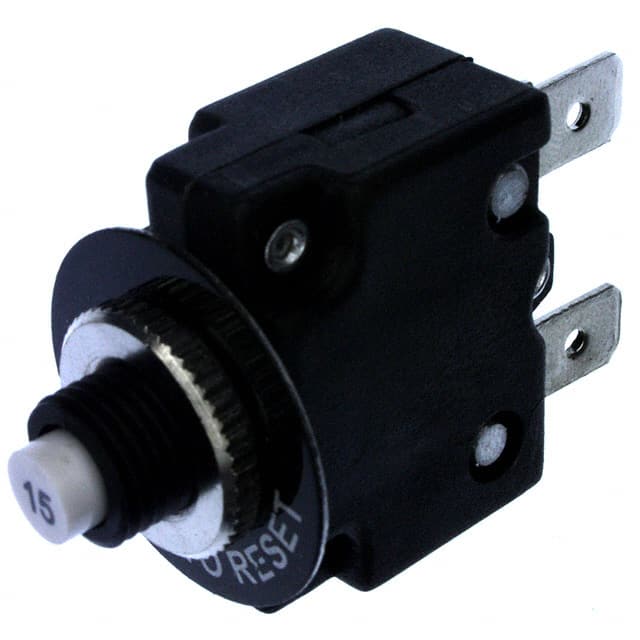

The Airpax™ ATR20 product family, including the ATR20-A-63S-WB2-B-15.0A-2, comprises single-pole, thermally operated overload protectors with a snap-acting trip mechanism. This design ensures reliable, trip-free operation during current overloads.
Key electrical specifications include a current rating of 15A and voltage ratings of 250 VAC and 50 VDC. The breaker type is thermal, with a push-to-reset actuator. It features a maximum breaking capacity of 60A and a conditional short circuit capacity of 1000A at 125/250VAC.
Designed for general industrial applications, this circuit protector has a maximum operating temperature of 60°C ambient. It is suitable for panel mounting and offers an operational life of 1000 cycles at 2x In. The unit is RoHS compliant and has an insulation resistance of a minimum 100 MΩ at 500VDC.
The ATR20 series is available with multiple mounting configurations, including central nut and wing clip, making it versatile for various equipment protection needs.
The standard current rating for this breaker is 15 Amps.
It is rated for 250 VAC and 50 VDC.
This is a single-pole circuit breaker.
It is a thermal circuit breaker with trip-free operation.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 compliant.
